TE Connectivity | 1734037-4

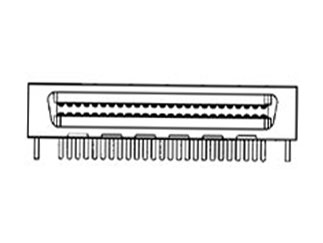

The 1734037-4 is a 40 Position 1.27 mm pitch through hole right angle receptacle.

Features:

• Product Type Features:
• Product Type = Connector
• Profile = Standard
• PCB Mount Style = Through Hole
• PCB Mounting Orientation = Right Angle
• Type of Connector = Series I
• Color = Black
• Used For = Board To Board Applications
• Product Series = Series I
• Mechanical Attachment:
• Boardlock Material = Brass
• Boardlock Plating = Tin
• Termination Features:
• Termination Post Length (mm [in]) = 3.10 [0.122]
• Solder Tail Contact Plating = Tin
• Body Features:
• Number of Positions = 40
• Centerline (mm [in]) = 1.27 [0.050]
• PCB Mount Retention Type = Boardlock(s)
• Contact Features:
• Contact Plating, Mating Area, Material = Gold Flash over Palladium Nickel
• Contact Base Material = Phosphor Bronze
• Housing Features:
• Connector Style = Receptacle
• Housing Temperature Rating = High
• Housing Material = Liquid Crystal Polymer (LCP)
• UL Flammability Rating = UL 94V-0
