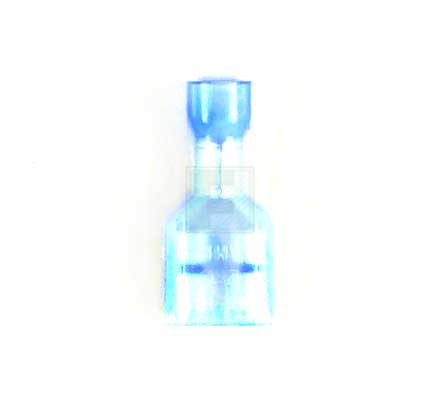

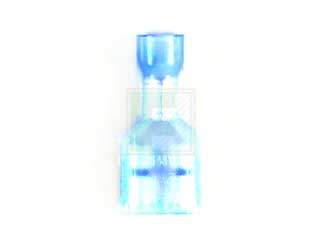

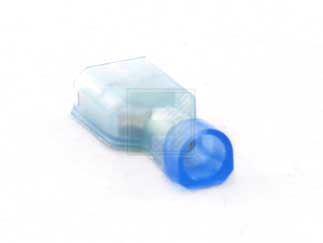

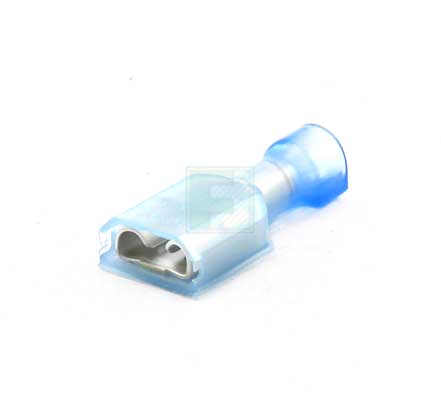

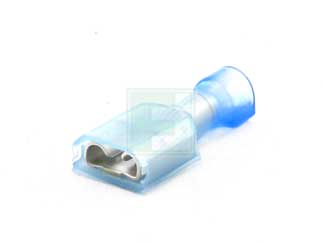

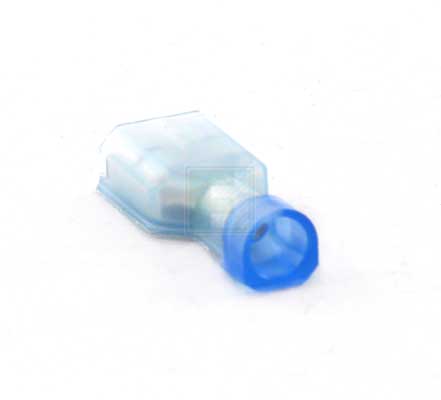

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

3-520408-2

Ultra Fast Plus 16-14 AWG Straight Fully Insulated Receptacle Assembly

3-520408-2 Datasheet 3-520408-2 Documentation 3D View Product Drawing
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1 per Bag
Date Code:	2225

TE Connectivity 3-520408-2 - Technical Attributes

Size:	Tab 0.250" x 0.032"
Style:	Fully Insulated
Type:	Receptacle
Wire Gauge:	AWG 16-14

Features & Applications

The Ultra Fast Series is a 16-14 AWG Straight Fully Insulated Receptacle Assembly

The Ultra-Fast Fully Insulated FASTON Receptacle and Tab offers the advantage of a completely protected terminal and a wire crimp with comparable electromechanical performance to open barrel “F” crimp FASTON Terminals.

Features:

Terminal Type = Receptacle
Proprietary Name = Ultra-Fast
Receptacle Style = Straight
Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]
Material = Brass
Insulation Diameter (mm [in]) = 2.29-4.06 [.090-.160]
Insulation Support = Insulation Support
Finish = Tin
