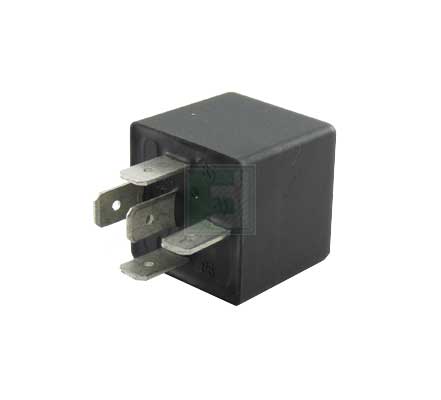

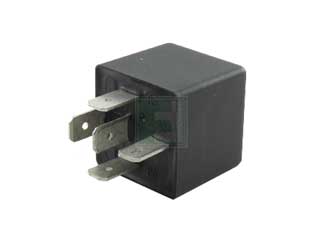

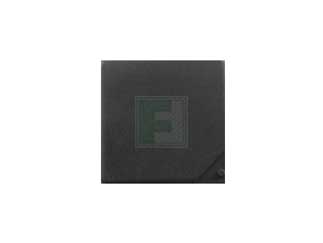

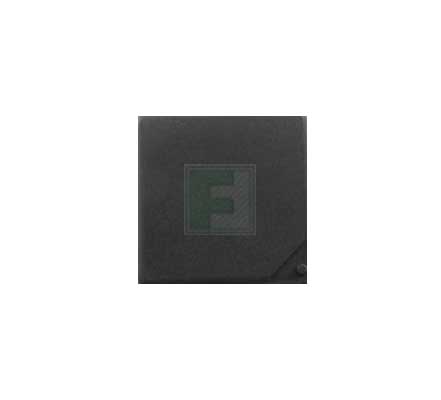

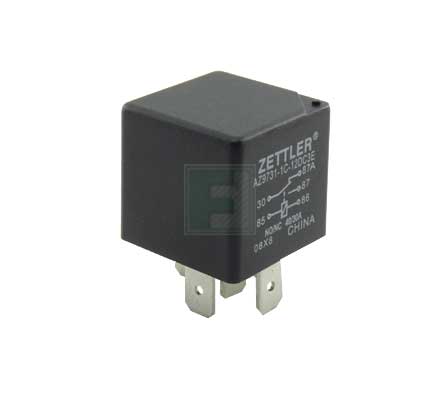

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

AZ9731-1C-12DC3E

AZ9731 Series 30 A SPDT 12 VDC Mini-ISO Quick Connect Automotive Relay

AZ9731-1C-12DC3E Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	American Zettler
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 20 per Tray Mounting Method: Bracket Mount
Date Code:

American Zettler AZ9731-1C-12DC3E - Technical Attributes

Contact Form:	SPDT (1 Form C)
Contact Current-Max:	30A
Nominal Coil Voltage:	12V
Termination Style:	Quick Connect
Mounting Method:	Bracket Mount

Features & Applications

Traditional craftsmanship and engineering excellence have long been the trademarks of American Zettler relays. For more than 100 years Zettler has established a worldwide reputation for superior performance.American Zettler, headquartered in California, produces over forty different types of relays to meet the many specific requirements of commercial and industrial applications.

Because of their high reliability, American Zettler relays are used in a wide range of demanding applications including telecommunications systems, computer peripheral and office automation equipment, home appliances, security systems, test and measurement devices, industrial controls and many other types of electric and electronic equipment.

FEATURES
• Quick connect terminals
• 40 Amp contact rating
• High operating temperature (125°C)
• SPST (1 Form A), SPDT (1 Form C)
• Epoxy sealed versions available
• Plastic or steel mounting bracket available
• Resistor or diode parallel to coil available
• ISO/TS 16949, ISO14001
• Tested in accordance with SAE J2544

The AZ9731-1C-12DC3E is a low cost 40 amp Mini-ISO automotive relay with a nominal coil voltage of 12 VDC. The AZ9731-1C-12DC3E features plug-in terminals with a SPDT contact arrangement. This relay is built in accordance to automotive industry standards of TS 6949 and tested to automotive spec SAE J2544.
