Manufacturer Part #
AZ988-1AT-12DSEC3R

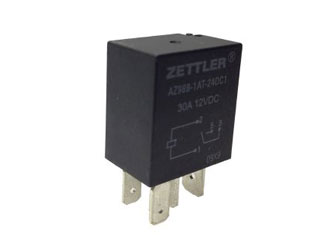

AZ988 Series 30 A SPST 12 VDC Micro-ISO PCB Terminal Automotive Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | American Zettler | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Box Mounting Method:PCB Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
American Zettler AZ988-1AT-12DSEC3R - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
American Zettler AZ988-1AT-12DSEC3R - Technical Attributes
Attributes Table
| Relay Type: | Automotive |
| Contact Form: | SPST (1 Form A) |
| Contact Current-Max: | 30A |
| Nominal Coil Voltage: | 12V |
| Termination Style: | PC Pin |
| Coil Type: | Non-Latching |
| Coil Resistance: | 124Ω |
| Switching Voltage: | 27V |
| Contact Material: | Silver Tin Oxide |
| Insulation Resistance: | 500MΩ |
| Operating Temp Range: | -40°C to +125°C |
| No of Terminals: | 5 |
| Mounting Method: | PCB Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
100
$3.11
200+
$3.05
Product Variant Information section
Available Packaging
Package Qty:
100 per Box
Mounting Method:
PCB Mount
