Manufacturer Part #
V27ZA4P

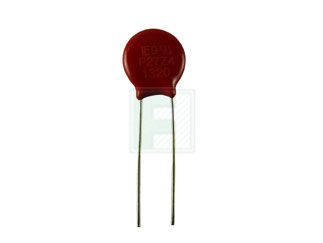

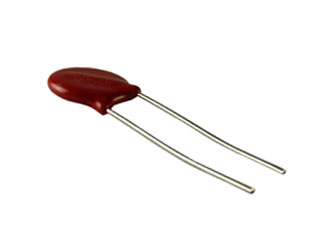

ZA Series 22 VDC 17 V RMS 53 V Clamp 1000 A 7000 pF Radial Lead Varistor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:700 per Box Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | 2536 | ||||||||||
Product Specification Section
Littelfuse V27ZA4P - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V27ZA4P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/3111564
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V27ZA4P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/3111564
Littelfuse V27ZA4P - Technical Attributes
Attributes Table
| Capacitance: | 7000pF |
| Clamping Voltage-Max: | 53V |
| Peak Output Current: | 1000A |
| Rated Voltage: | 22V |
| RMS Voltage-Max: | 17V |
| Varistor Voltage Range: | 24.3V to 29.7V |
| Current Rating: | 1mA |
| Energy: | 5J |
| Insulation Resistance: | 1000MΩ |
| Operating Temp Range: | -55°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 2 |
| Diameter: | 14mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
1,324
USA:
1,324
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1
$0.21
150
$0.205
500
$0.199
2,000
$0.194
7,500+
$0.186
Product Variant Information section
Available Packaging
Package Qty:
700 per Box
Package Style:
RADIAL
Mounting Method:
Through Hole
