Manufacturer Part #
IKY40N120CH3XKSA1

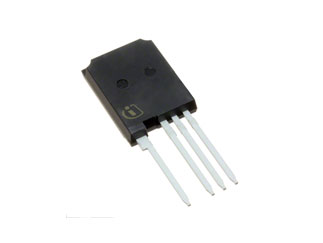

Transistor IGBT N-CH 1200V 80A 4-Pin TO-247 Tube
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:240 per Tube Package Style:TO-247-4 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Infineon IKY40N120CH3XKSA1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Fabrication Site Change
09/07/2022 Details and Download
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=IKY40N120CH3XKSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/3178827
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=IKY40N120CH3XKSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/3178827
Infineon IKY40N120CH3XKSA1 - Technical Attributes
Attributes Table
| CE Voltage-Max: | 1.2kV |
| Collector Current @ 25C: | 80A |
| Power Dissipation-Tot: | 500W |
| Pulsed Collector Current: | 160A |
| Collector - Emitter Saturation Voltage: | 2V |
| Turn-on Delay Time: | 30ns |
| Turn-off Delay Time: | 280ns |
| Qg Gate Charge: | 190nC |
| Reverse Recovery Time-Max: | 350ns |
| Input Capacitance: | 2385pF |
| Operating Temp Range: | -40°C to +175°C |
| Package Style: | TO-247-4 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
19 Weeks
Quantity
Unit Price
240
$3.36
480
$3.33
720
$3.31
960
$3.30
1,200+
$3.26
Product Variant Information section
Available Packaging
Package Qty:
240 per Tube
Package Style:
TO-247-4
Mounting Method:
Through Hole
