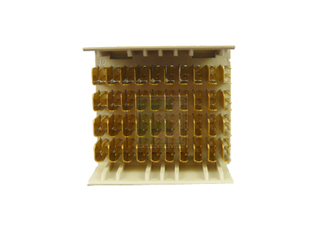

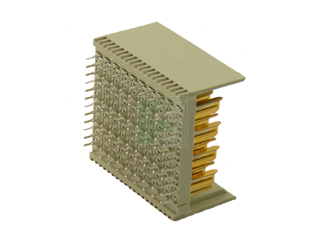

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

6469002-1

80 Position 2.5 mm Vertical Header Backplane Z-PACK HM-Zd Signal Connector

6469002-1 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 20 per Tube Mounting Method: Through Hole
Date Code:	2049

TE Connectivity 6469002-1 - Technical Attributes

No of Positions:	80
Pitch:	2.5 mm
Style/Orientation:	Vertical Header/Plug
Termination:	Press-fit
Contact Plating:	Gold
Material:	Polyester
No of Rows:	8
Gender:	Male
Type:	Header
Mounting Method:	Through Hole

Features & Applications

The 6469002-1 is a Z-PACK 80 Position Through Hole Press Fit 4 Pair 25.4 mm Card Slot Pitch Vertical Pin Header.

The AMP Z-Pack 2mm HM Interconnection System brings unparalleled, space saving flexibility for circuit design of free and fixed/backplane boards, in front side and midplane arrangements, with accompanying cable connectors and lead assemblies. It allows high speed signal performance to be employed with confidence and efficiency.

Product Features:

Product Type = Connector
Connector Type = Header
PCB Mounting Orientation = Vertical
Shield Material = Phosphor bronze
Interface Type = HM-Zd
Termination Method = Press Fit
Termination End Plating = Tin over Nickel
Card Slot Pitch (mm [in]) = 25.4 [1]
Columns per Connector = 10
Centerline (mm [in]) = 2.50 [0.098]
Selectively Loaded = No
Number of Positions = 80
Number of Pairs per Column = 4
Number of Pairs per Connector = 40

View the Available Z-Pack Series of Connectors
