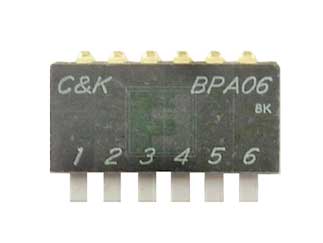

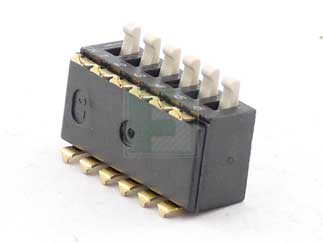

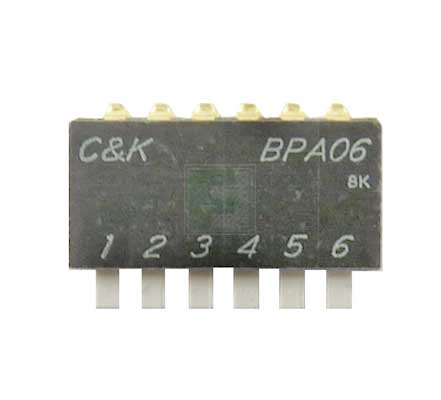

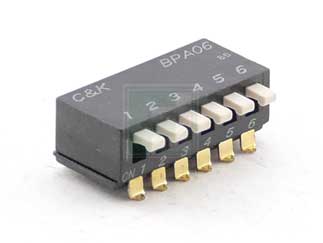

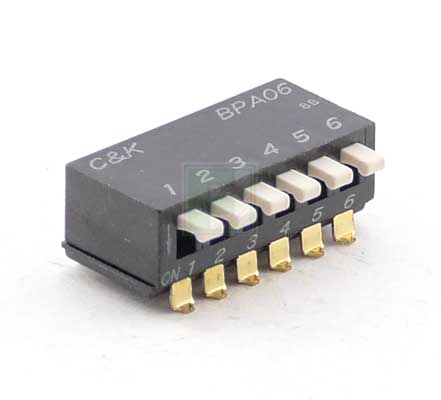

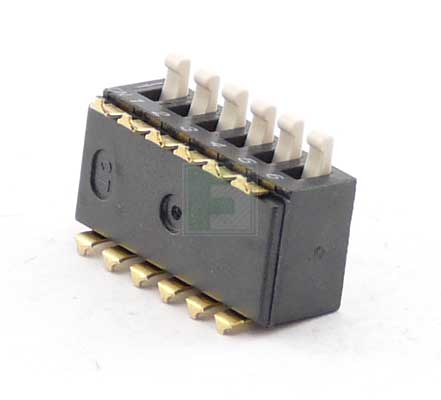

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

BPA06SB

BPA Series Side Actuated SPST 6 Position Surface Mount DIP Switch

BPA06SB Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	C&K
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 25 per Tube Mounting Method: Surface Mount
Date Code:

C&K BPA06SB - Technical Attributes

Type:	Dip
No of Positions:	6
Circuitry:	SPST
Actuator Style:	Standard
Operating Force:	800gf
Termination Style:	Gull Wing
Sealed Option:	Unsealed
Contact Resistance:	50mΩ
Voltage Rating:	5V
Current Rating:	100mA
Insulation Resistance:	100MΩ
Terminal Pitch:	2.54mm
Operating Temp Range:	-20°C to +85°C
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

With more than 50 years experience, C&K is synonymous with quality and reliability, two qualities that come as standard with the BPA Series of DIP switches.

The BPA Series of Side Actuated DIP Switches offer Single Pole, Single Throw (SPST) Normally Open (NO) switch operation in both surface mount and through hole models.

These DIP switches are available with 2-10 positions. Terminals and contacts are Beryllium copper with gold over nickel plate.

Typical applications for the SDA Low Profile DIP Switch include:

Address switch for industrial controls
Logic switching for computers and peripherals
Function controlling for numerous applications.

The BPA06SB offers a Single Pole, Single Throw (SPST) Normally Open (NO) switch operation. This 6 position surface mount side actuated DIP switch is packaged in a 25 piece tube.
