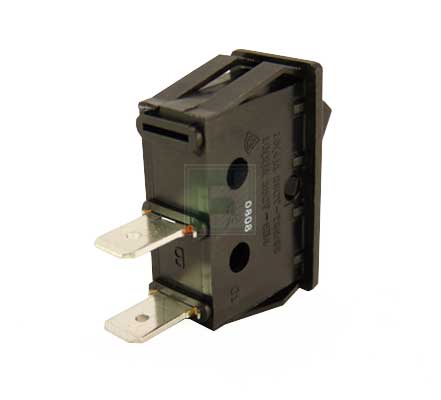

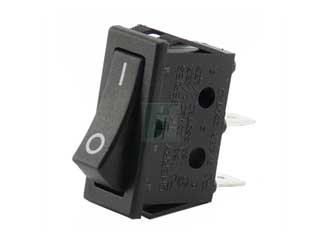

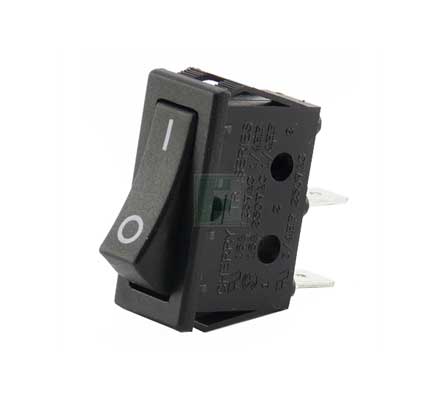

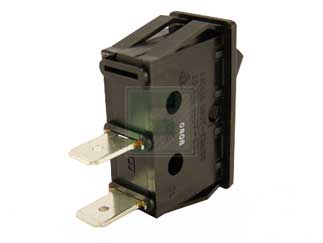

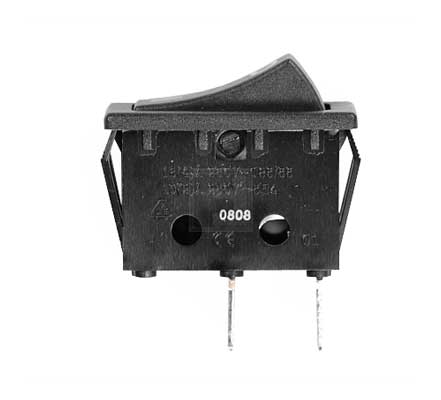

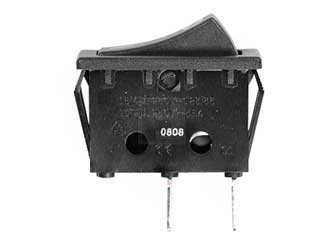

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

TRG22F2FBBNN

TR Series 16 A Non Lighted SPST On-Off Panel Mount Thin Power Rocker Switch

TRG22F2FBBNN Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	ZF Electronics
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 250 per Bag Mounting Method: Panel Mount
Date Code:

ZF Electronics TRG22F2FBBNN - Technical Attributes

Switch Operation:	On-Off
Circuitry:	SPST
Current Rating:	16A
Termination Style:	Quick Connect
Contact Material:	Silver
Mounting Method:	Panel Mount

Features & Applications

Cherry is a global leader in the design, development and manufacture of Snap Action Switches, Rocker Switches, Keyboards and Sensors. Taking pride in the company’s vigorous innovation policy and superior customer service guidelines, product performance meets the highest standards for quality, reliability and durability. Utilizing the latest design automation tools and in-house prototyping systems, Cherry offers the rapid designs and working prototypes for your application.

The TR Series of Thin Power Rocker Switches is offered with a 16 amp current rating with a double throw and three position versions. This economical rocker switch is available in a wide variety of colors and actuator marking with lighted or non-lighted versions.

Typical applications for the TR Series include:

Medical and Dental Equipment
Small Appliances
Vending Machines
Power Supplies
Surge Protectors

The TRG22F2FBBNN is rated at 16 amps with single pole, single throw (SPST) switch operation and On-Off function. This is a non-lighted switch with black housing and actuator and with a -/O markings on the curved rocker. Termination is straight 6.3mm (0.250”) quick connect.
