Manufacturer Part #
1-102387-0

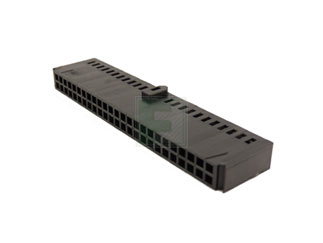

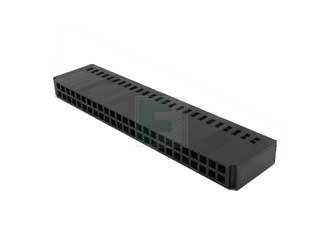

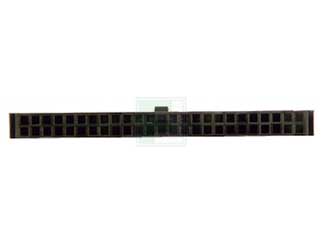

AMPMODU 50 Position Dual Row 2.54 mm Pitch Crimp Unloaded Socket Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | 2534 | ||||||||||
TE Connectivity 1-102387-0 - Product Specification
Shipping Information:
ECCN:
PCN Information:
*****FPCN111401 UPDATE*****Description of ChangesThis PCN is to notify that the 'shipment date of the change' in PCN-25-234561 will be 25-April-2025 instead of 19-MAR-2026. Please note that this correction does not affect the product's specifications, design, or drawings. Previous Date: 19-MAR-26 Corrected Date: 09-April-2025Reason for Change:1. Update made to correct PCN-25-234561 typo error. 2. shipment date of the change' in PCN-25-234561 will be 25-April-2025 instead of 19-MAR-2026.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-102387-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/3913199
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-102387-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/3913199
TE Connectivity 1-102387-0 - Technical Attributes
| Type: | Wire to Board |
| No of Positions: | 50 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | Crimp |
Features & Applications
The 1-102387-0 is a AMPMODU 50 position dual row 2.54 mm pitch crimp unloaded socket housing. It has an operating temperature ranging from - 65°C to 105°C
Features:
- Product Type Features:
- Product Type = Connector
- Connector Type = Housing
- Termination Method to Wire/Cable = Crimp
- Connector Series = Mod IV
- Housing Configuration = Both Ends Closed
- Electrical Characteristics:
- Contact - Rated Current (A) = 3
- Voltage Rating (VAC) = 250
- Termination Resistance (m?) = 12
- Insulation Resistance (M?) = 5,000
- Dielectric Withstanding Voltage (V) = 750
- Body Features:
- Centerline (mm [in]) = 2.54 [0.100]
- Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
- Number of Positions = 50
- Number of Rows = 2
- Contact Features:
- Contact Type = Socket
- Housing Features:
- Connector Style = Receptacle
- Mating Alignment Type = Center
- Housing Color = Black
- UL Flammability Rating = UL 94V-0
- Housing Material = Thermoplastic - GF
View the complete family of AMPMODU socket housing
Available Packaging
Package Qty:
1 per Box
