Diodes Incorporated | SBR1045D1-13

Manufacturer Part #

SBR1045D1-13

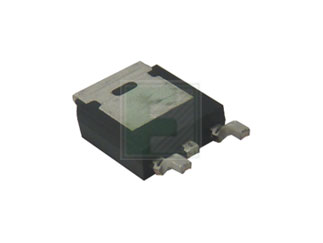

SBR1045D1 Series 45 V 10 A Super Barrier Rectifier Surface Mount - TO-252-3

ECAD Model:
Mfr. Name: Diodes Incorporated
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Diodes Incorporated SBR1045D1-13 - Technical Attributes
Attributes Table
Average Rectified Current-Max: 10A
Peak Current-Max: 90A
Reverse Voltage-Max [Vrrm]: 45V
Reverse Current-Max: 50µA
Forward Voltage: 0.58V
Package Style:  TO-252-3 (DPAK)
Mounting Method: Surface Mount
Features & Applications
The SBR1045D1-13 is a part of SBR1045D1 Series 45 V 10 A Surface Mount Super Barrier Rectifier. It has an operating and storage temperature range of -65 ºC to +150 ºC and it is available in TO-252-3L Package.

Features:

  • Low Forward Voltage Drop
  • Excellent High Temperature Stability
  • Patented Super Barrier Rectifier Technology
  • Soft, Fast Switching Capability
  • Lead Free Finish, RoHS Compliant
  • “Green” Molding Compound (No Br, Sb)
  • Qualified to AEC-Q101 Standards for High Reliability
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
2500
Multiple Of:
2500
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$737.50
USD
Quantity
Unit Price
2,500
$0.295
5,000+
$0.29
