TE Connectivity | 640500-1

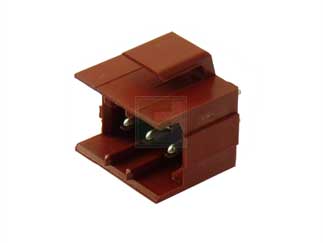

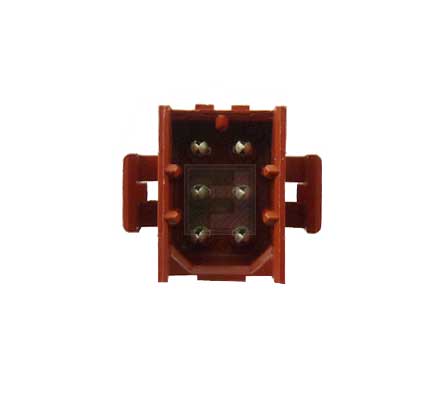

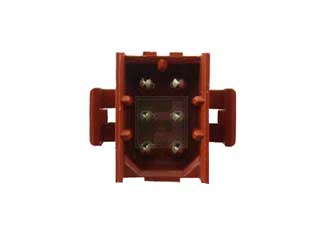

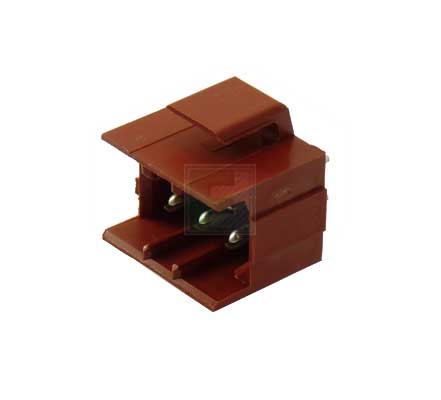

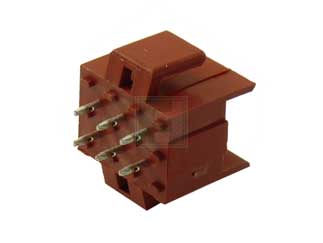

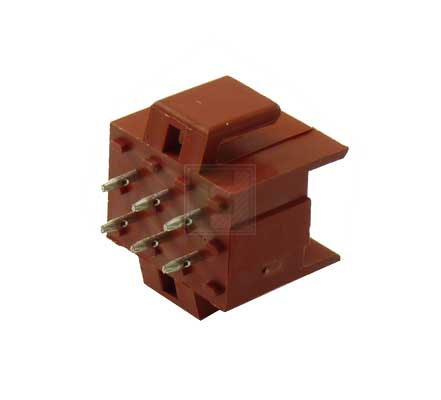

The 640500-1 is a part of 640500 series 6 position through hole dual row straight header. It has an operating temperature ranging from - 55°C to 105°C.

Features:

• Product Type Features:
• Product Type: Connector
• Connector Type: Header
• PCB Mount Retention = Without
• Termination Method to PC Board: Through Hole - Solder
• PCB Mounting Orientation: Vertical
• Mechanical Attachment:
• Mating Retention Type: Positive Lock
• Electrical Characteristics:
• Contact - Rated Current (A): 9
• Operating Voltage (VAC): 250
• Termination Features:
• Tail Length (mm [in]): 3.81 [0.149]
• Tail Orientation: In-line
• Body Features:
• Number of Positions: 6
• Length (X-Axis) (mm [in]): 15.75 [0.620]
• Width (Z-Axis) (mm [in]): 19.94 [0.785]
• Profile Height (Y-Axis) (mm [in]): 13.46 [0.530]
• Centerline (mm [in]): 4.19 [0.1649]
• Contact Features:
• Contact Type: Pin
• Contact Base Material: Phosphor Bronze
• Contact Plating, Mating Area, Material: Pre-Tin
• Contact Plating, Mating Area, Thickness (µm [µin]): 0.4 [15.75]
• Tail Plating Material: Tin
• Tail Plating, Thickness (µm [µin]): 2 [78.74]
• Contact Design: Formed Pin
