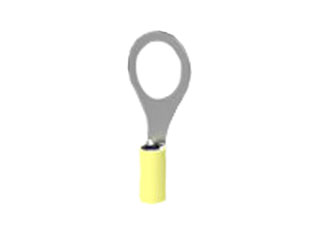

PIDG 12-10 AWG Straight Closed Barrel Ring Tongue Terminal
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Box | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 320577 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=320577&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/4947230
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=320577&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/4947230
TE Connectivity 320577 - Technical Attributes
| Size: | Stud 3/8" |
| Style: | Insulation Support |
| Type: | Ring |
| Wire Gauge: | AWG 12-10 |
| Color: | Yellow |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Gender: | Female |
| Operating Temp Range: | 105°C |
| Voltage Rating: | 300V |
Features & Applications
The PIDG Series is a 12-10 AWG Straight Closed Barrel Ring Tongue Terminal.
Each consists of a precision--formed metal wire barrel and a copper sleeve encased in insulating material made of nylon, polyvinyl chloride (PVC) or polyvinyl fluoride (PVF2). The insulation is color coded to correspond with a specific wire size or wire size range. The terminals, splices, and end caps accept a combination of solid and stranded wire. The wire barrel contains serrations that provide maximum contact and tensile strength after crimping the terminal, splice, or end cap onto the wire.
Features:
- Terminal Shape = Ring Tongue
- Receptacle Style = Straight
- Body Style = PIDG
- Barrel Type = Closed Barrel
- Wire/Cable Type = Regular Wire
- Insulation = Yes
- Insulation Support = Insulation Support
- Insulation Diameter (mm [in]) = 3.81-5.84 [.150-.230]
- Stud Diameter (mm [in]) = 9.53 [0.375]
- Stud Size = 3/8 [9.53]
- Shape = RING-041
- Heavy Duty = No
- Material = Copper
- Finish = Tin
- Color = Yellow
- Insulation Material = Nylon
Available Packaging
Package Qty:
500 per Box
