Manufacturer Part #
FDMQ86530L

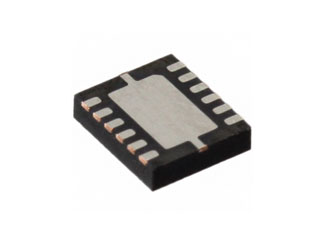

FDMQ86530L Series 60 V 8 A 17.5 mOhm N-Channel PowerTrench Mosfet - MLP-12
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:MLP-12 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi FDMQ86530L - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
onsemi FDMQ86530L - Technical Attributes
Attributes Table
| Fet Type: | N-Ch |
| No of Channels: | 4 |
| Drain-to-Source Voltage [Vdss]: | 60V |
| Drain-Source On Resistance-Max: | 17.5mΩ |
| Rated Power Dissipation: | 1.9|W |
| Qg Gate Charge: | 23nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 8A |
| Turn-on Delay Time: | 8.8ns |
| Turn-off Delay Time: | 22ns |
| Rise Time: | 3.8ns |
| Fall Time: | 2.8ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 1.8V |
| Technology: | PowerTrench |
| Height - Max: | 0.75mm |
| Length: | 5mm |
| Input Capacitance: | 1725pF |
| Package Style: | MLP-12 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
3,000+
$1.47
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
MLP-12
Mounting Method:
Surface Mount
