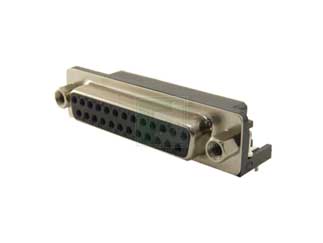

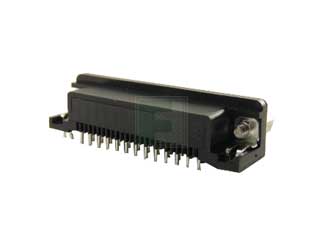

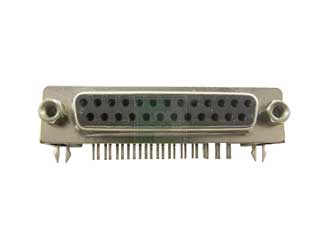

Adam Tech | DB25-SL-23

The DB25-SL-23 is a part of DSL Series .318" 25 Position right angle Plug PCB mount D-Sub connectors and popular interface for many I/O applications

These connectors are Offered in 9, 15, 25 and 37 positions they are a good choice for a low cost industry standard connection. Manufactured with precision stamped contacts offering a choice of contact plating and a wide selection of mating and mounting options

Features:

• Industry standard compatibility
• Durable metal shell design
• Precision formed contacts
• Variety of Mating and mounting options

Material & Specifications:

• Standard insulator: PBT, 30% glass reinforced, rated UL94V-0
• Optional Hi-Temp insulator: Nylon 6T
• Insulator color: Black
• Contacts: Phosphor Bronze
• Shell: Steel, Tin or Zinc plated
• Hardware: Brass, Nickel plated
• Operating voltage: 250 V AC / DC max.
• Current rating: 5 Amps max.
• Contact resistance: 20 m Ω max. initial
• Insulation resistance: 5000 MΩ min.
• Dielectric withstanding voltage: 1000 V AC for 1 minute
• Insertion force: 0.75 lbs max
• Extraction force: 0.44 lbs min
• Operating temperature: -55°C to +105°C
