Manufacturer Part #
SML-LX15GC-RP-TR

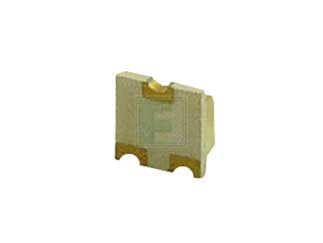

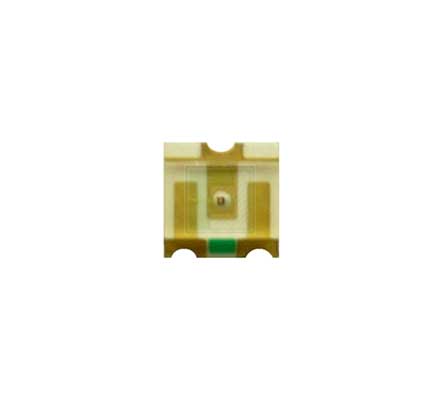

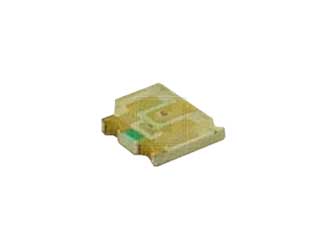

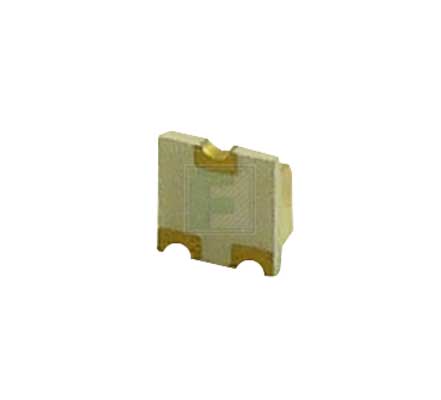

Green 3 x 3 mm 140° Water Clear 10 mcd 2.1 V Reverse Polarity Surface Mount LED
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Lumex | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Lumex SML-LX15GC-RP-TR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SML-LX15GC-RP-TR&field4=Lumex&field18=https://p1na.futureelectronics.com/p/5204888
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SML-LX15GC-RP-TR&field4=Lumex&field18=https://p1na.futureelectronics.com/p/5204888
Lumex SML-LX15GC-RP-TR - Technical Attributes
Attributes Table
| No of LEDs: | 1 |
| Color: | Green |
| Lens Type: | Clear |
| Forward Voltage: | 2.1V |
| Forward (Drive) Current: | 20mA |
| Intensity: | 10mcd |
| Viewing Angle: | 140° |
| Wavelength: | 565nm |
| Rated Power: | 100mW |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -40°C to +85°C |
| Dimension: | H 1mm x L 3mm x W 3mm |
| Moisture Sensitivity Level: | 3 |
| Mounting Method: | Surface Mount |
Features & Applications
The SML-LX15GC-RP-TR is a 2.1 V 3 mm x 3 mm 1210 Package Reverse Polarity Green color with Water Clear Lens Half Moon Solder Terminals Surface Mount QuasarBrite LEDs.
Features:
- State-of-the-Art, High Brightness Chip Technology
- Choice of LED Colors and Lens FInishes
- Lead Frame / Lens Casting Reliability
- Easy-to-Solder Leads, Tin Finish
- Custom Solutions available
Parameters:
- Peak Forward current: 100 mA
- Power Dissipation (Red) 100 mW
- Derate from 25°c : -1.2 mW/°C
- Operating temperature : -40 to + 85°C
- Peak wave length : 585 nm
- Forward voltage (Red) : 2.1 V to 2.8 V
- Reverse Voltage : 5.0 V
- Emitted color : Green
- Epoxy Lens Finish : Water clear
Applications:
