Manufacturer Part #
1-1761608-5

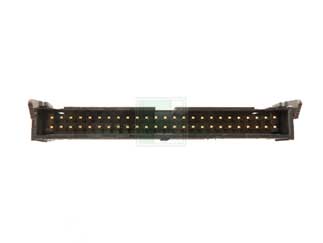

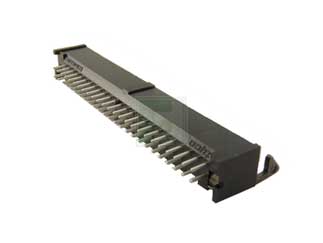

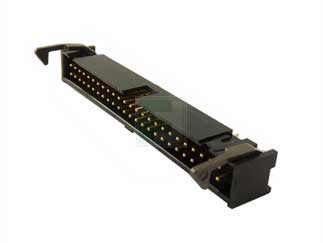

AMP-LATCH 50 Position 2.54 mm Through-Hole Dual Row Straight Pin Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:7 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-1761608-5 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1761608-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5695879
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1761608-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5695879
TE Connectivity 1-1761608-5 - Technical Attributes
Attributes Table
| No of Positions: | 50 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Type: | Pin Headers |
| Mounting Method: | Through Hole |
Features & Applications
The 1-1761608-5 is a AMP-LATCH Low Profile 50 Position 2.54 mm Pitch Through-Hole Dual Row Straight Pin Header.
Product Specification:
- Product Line = AMP-LATCH
- Profile = Low
- PCB Mounting Orientation = Vertical
- PCB Mount Retention = Without
- Mating Connector Lock = Without
- Housing Style = 4-Sided
- Ejection Latches = With
- Post Size (mm [in]) = 0.64 [.025]
- Termination Post Length (mm [in]) = 2.60 [0.102]
- Solder Tail Contact Plating = Tin over Nickel
- Header Type = Pin Header
- Number of Positions = 50
- Centerline, Matrix (mm [in]) = 2.54 x 2.54 [.100 x .100]
- Daisy Chain = With
- Contact Plating, Mating Area, Material = Gold Flash over Palladium Nickel
- Contact Shape = Square
- Contact Base Material = Phosphor Bronze
View the Complete Series of Dual Row Straight Pin Headers
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
7
$7.53
21
$7.46
35
$7.43
140
$7.34
210+
$7.29
Product Variant Information section
Available Packaging
Package Qty:
7 per Tube
Mounting Method:
Through Hole
