TE Connectivity | 1-104257-1

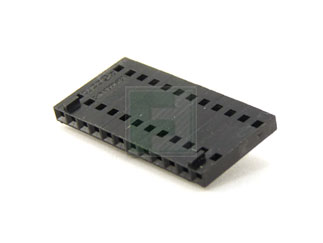

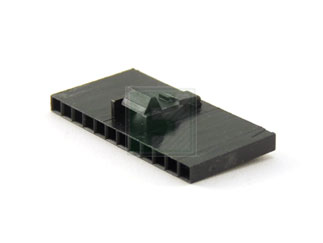

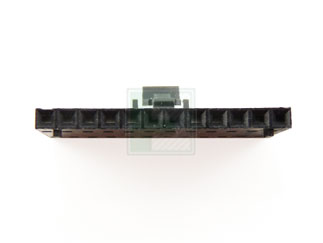

The 1-104257-1 is a AMPMODU 12 position single row 2.54 mm pitch crimp unloaded socket housing.

Features:

• Self-retaining contacts provide permanent connection with quick connect and disconnect
• Fast, easy installation with no additional locking hardware required
• Mates with .025 [0.64] square posts in a variety of configurations
• Single- and double-row configurations in up to 20 positions on .100 [2.54] centers
• Modular design permits end-to-end stacking (double- row only) for circuit grouping
• Choice of tin or select gold plating
• Housings made of 94V-0 rated glass-filled polyester
• Contact Current Rating—3 amperes
• Termination Resistance:
• 12 milliohms (max.)—Gold plated contacts
• 16 milliohms (max.)—Tin plated contacts

View the complete family of AMPMODU socket housing
