Manufacturer Part #
IRS21844STRPBF

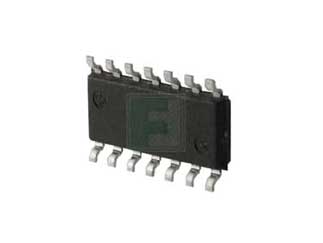

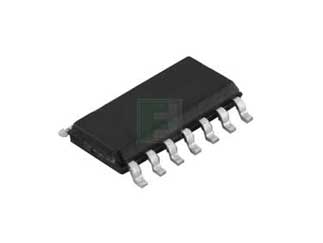

IRS21844 Series 1.9 A 20 V Supply Dual Output Half Bridge Driver - SOIC-14
Product Specification Section
Infineon IRS21844STRPBF - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Fabrication Site Change
08/16/2023 Details and Download
Part Status:
Active
Active
Infineon IRS21844STRPBF - Technical Attributes
Attributes Table
Configuration: | Half Bridge |
No of Outputs: | Dual |
Peak Output Current: | 2.3A |
Supply Voltage-Max: | 20V |
Rated Power Dissipation: | 1W |
Quiescent Current: | 1mA |
Turn-off Delay Time: | 270ns |
Turn-on Delay Time: | 680ns |
Rise Time: | 40ns |
Fall Time: | 20ns |
Operating Temp Range: | -40°C to +125°C |
Package Style: | SOIC-14N |
Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
2,500+
$0.95
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-14N
Mounting Method:
Surface Mount
