Manufacturer Part #
MC56F84763VLH

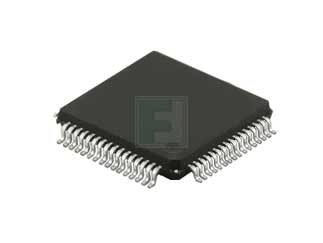

MC56Fxx Series 128 kB Flash 24 kB RAM SMT 32-Bit Microcontroller - LQFP-64
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NXP | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:160 per Tray Package Style:LQFP-64 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2441 | ||||||||||
Product Specification Section
NXP MC56F84763VLH - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
3A991.a.2
This item may be subject to export licensing controls.
PCN Information:
N/A
File
Date
Part Status:
Active
Active
NXP MC56F84763VLH - Technical Attributes
Attributes Table
| Family Name: | MC56Fxx |
| Core Processor: | 56800EX |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 128kB |
| RAM Size: | 24kB |
| Speed: | 100MHz |
| No of I/O Lines: | 54 |
| InterfaceType / Connectivity: | CAN/I2C/LIN/SCI/SPI |
| Peripherals: | Brown-out Detect/DMA/LVD/POR/PWM/Reset/Watchdog |
| Supply Voltage: | 3V to 3.6V |
| Operating Temperature: | -40°C to +105°C |
| On-Chip ADC: | 16-chx12-bit / 8-chx16-bit |
| On-Chip DAC: | 1-chx12-bit |
| Watchdog Timers: | 1 |
| Package Style: | LQFP-64 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
1,120
USA:
1,120
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1
$6.26
5
$6.20
20
$6.13
40
$6.09
100+
$6.00
Product Variant Information section
Available Packaging
Package Qty:
160 per Tray
Package Style:
LQFP-64
Mounting Method:
Surface Mount
