Manufacturer Part #
STGIF7CH60TS-L

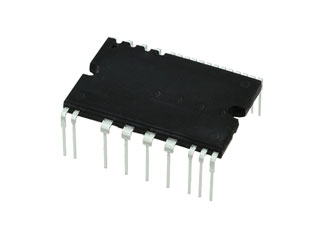

SLLIMM 2nd Series 600 V 10 A 3-Phase Inverter Short-Circuit Rugged IGBT - SDIP2F-26L
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:13 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics STGIF7CH60TS-L - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=STGIF7CH60TS-L&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/6092492
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=STGIF7CH60TS-L&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/6092492
STMicroelectronics STGIF7CH60TS-L - Technical Attributes
Attributes Table
| CE Voltage-Max: | 600V |
| Collector Current @ 25C: | 10A |
| Power Dissipation-Tot: | 31W |
| Pulsed Collector Current: | 20A |
| Collector - Emitter Saturation Voltage: | 1.7V |
| Reverse Recovery Time-Max: | 248ns |
| Thermal Resistance: | 4.8°C/W |
| Operating Temp Range: | -40°C to +175°C |
| No of Terminals: | 26 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
13
$6.20
52
$6.15
195
$6.09
390
$6.07
975+
$6.00
Product Variant Information section
Available Packaging
Package Qty:
13 per Tube
Mounting Method:
Through Hole
