Manufacturer Part #
IRF820ALPBF

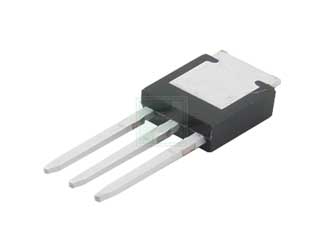

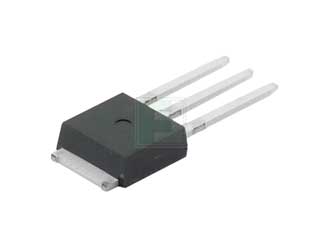

Single N-Channel 500 V 3 Ohms Surface Mount Power Mosfet - TO-262
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-262 (I2PAK) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2417 | ||||||||||
Product Specification Section
Vishay IRF820ALPBF - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Location Change
05/20/2025 Details and Download
Description of Change: Vishay Siliconix announces that we are going to transfer foundry capacity gradually (phase by phase) to Newport UK for commercial HVM Power MOSFET parts (Gen 3) due to termination of 6-inch wafer foundry at Tower Semiconductor, Israel.Reason for Change: Due to termination of 6-inch wafer foundry at Tower Semiconductor, IsraelStart Shipment Date: Monday September 1, 2025
Part Status:
Active
Active
Vishay IRF820ALPBF - Technical Attributes
Attributes Table
| Fet Type: | N-Ch |
| Drain-to-Source Voltage [Vdss]: | 500V |
| Drain-Source On Resistance-Max: | 3Ω |
| Rated Power Dissipation: | 50|W |
| Qg Gate Charge: | 17nC |
| Package Style: | TO-262 (I2PAK) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
50
USA:
50
Factory Lead Time:
N/A
Quantity
Unit Price
50
$0.93
200
$0.90
750
$0.875
1,250
$0.87
2,500+
$0.84
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-262 (I2PAK)
Mounting Method:
Surface Mount
