ROHM | 2SB1690TL

Manufacturer Part #

2SB1690TL

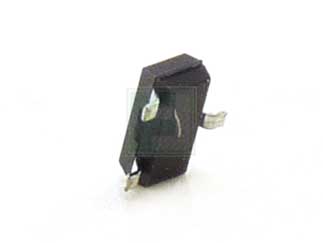

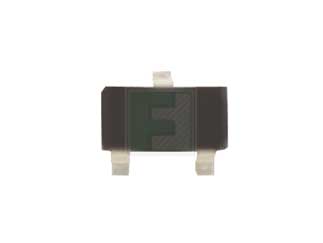

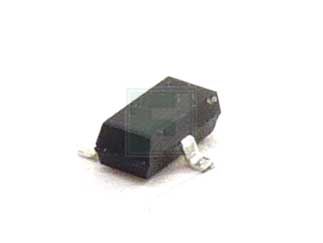

2SB1690 Series 12 V 2 A Surface Mount General Purpose Amplifier - TSMT-3

ECAD Model:
Mfr. Name: ROHM
Standard Pkg:
Product Variant Information section
Date Code: 2337
Product Specification Section
ROHM 2SB1690TL - Technical Attributes
Attributes Table
Polarity: PNP
Type: General Purpose
CE Voltage-Max: 12V
Collector Current Max: 2A
Power Dissipation-Tot: 1W
DC Current Gain-Min: 270
Mounting Method: Surface Mount
Features & Applications

The 2SB1690TL is a 2SB1690 Series 12 V 2 A General Purpose amplifier available in TSMT-3 Surface mount Package.It has an storage temperature ranging between -55 to 150°C.

Features:

  • A collector current is large.
  • Collector saturation voltage is low
    • VCE(sat) : max. -180 mV
    • at IC= -1A / IB= -50 mA

Applications:

  • Low frequency amplifier
  • Driver

View the 2SB1 Series of Bipolar Transistors

Read More...
Pricing Section
Global Stock:
3,000
USA:
3,000
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
20 Weeks
Minimum Order:
3000
Multiple Of:
3000
Total
$312.00
USD
Quantity
Unit Price
3,000
$0.104
6,000
$0.103
9,000
$0.102
15,000+
$0.10
