Manufacturer Part #

MR36-SC-14

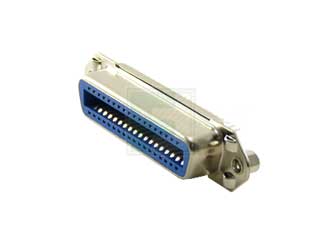

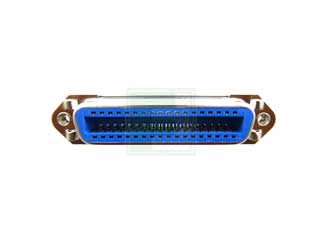

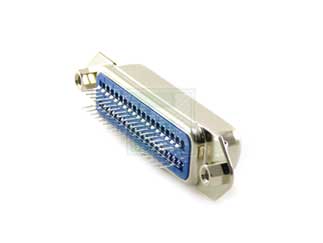

MR Series 36 Position Straight Socket Miniature Ribbon Connector

MR36-SC-14 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Adam Tech
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 40 per Box
Date Code:

Adam Tech MR36-SC-14 - Technical Attributes

Style/Orientation:	Standard Board Mount Receptacle
No of Positions:	36
Termination:	PCB
Material:	Front Metal

Features & Applications

The MR36-SC-14 is a Part of MR Series 36 Position Straight Socket Miniature Ribbon connectors come in a variety of terminations including Solder Terminals, Straight PCB Tails, Right Angle PCB mount, Flat Cable IDC and Straddle Mount Card Edge

These connectors with their high pressure, flat wiping contacts are a very popular widely used interface especially in telecommunication applications. Offered in 14, 24, 36 and 50 positions they are a good choice for high reliability positive latching connector applications

Features:

Available in many termination styles
High pressure blade contacts
Industry standard compatibility
Durable metal shell design
Variety of Mating and mounting options

Material & Specifications:

Standard insulator: PBT, Glass filled, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Blue (Black optional)
Contacts: Phosphor Bronze
Shell: Steel, nickel plated
Contact Plating: Gold over Nickel
Operating Voltage: 250 V AC
Current Rating: 1 Amp max.
Contact Resistance: 35 mΩ max.
Insulation Resistance: 1000 MΩ min.
Dielectric Withstanding Voltage: 1000V AC for 1 minute
Insertion force: 12 oz max.
Withdrawal force: 4.8 oz min.
Operating Temperature: -55°C to +105°C
