Manufacturer Part #
531102B02100G

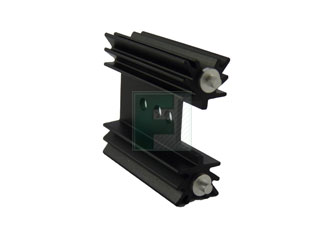

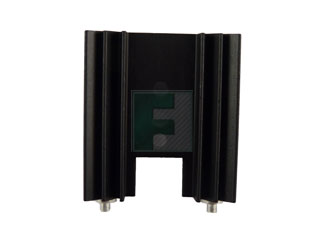

TO-220 Package 10.40 C/W Thermal Resistance Small Heat Sink with Radial Fins
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Boyd | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:750 per Bulk | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Boyd 531102B02100G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=531102B02100G&field4=Boyd&field18=https://p1na.futureelectronics.com/p/7811458
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=531102B02100G&field4=Boyd&field18=https://p1na.futureelectronics.com/p/7811458
Boyd 531102B02100G - Technical Attributes
Attributes Table
| Thermal Resistance: | 10.4°C/W |
| Material: | Black Anodized |
| Dimension: | H 38.1mm x L 12.7mm x W 34.92mm |
Features & Applications
The 531102B02100G is an Extruded heat sink with radial fins notched base and solderable pins.
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.
Specifications:
- Shape: Rectangular
- Length: 1.50" (38.10 mm)
- Width: 1.374" (34.90 mm)
- Height of Fin: 0.500" (12.70 mm)
- Material: Aluminum
- Material Finish: Black Anodized
- Power Dissipation @ Temperature Rise: 7 W @ 70°C
- Thermal Resistance @ Forced Air Flow: 4°C/W @ 300 LFM
- Thermal Resistance @ Natural: 10.4°C/W
- Package: TO-220
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$4.58
10
$4.48
25
$4.41
50
$4.36
125+
$4.24
Product Variant Information section
Available Packaging
Package Qty:
750 per Bulk
