Manufacturer Part #
RE50G561MDN1

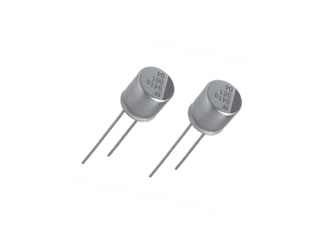

RE5 Series 560uF 4 V 105°C 2 kHrs 8 x 8mm LS=3.5mm Radial Aluminum Polymer Cap
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nichicon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Bulk Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Nichicon RE50G561MDN1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Nichicon RE50G561MDN1 - Technical Attributes
Attributes Table
| Type: | Metal Can Radial |
| Capacitance: | 560µF |
| Rated Voltage: | 4V |
| Tolerance (%): | ±20% |
| ESR (Equivalent Series Resistance): | 5mΩ |
| Leakage Current: | 560µA |
| Ripple Current: | 6300mA |
| Operating Temp Range: | -55°C to +105°C |
| Dimension: | L 8mm x D 8mm |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$0.285
100
$0.275
250
$0.27
500
$0.265
1,500+
$0.255
Product Variant Information section
Available Packaging
Package Qty:
100 per Bulk
Mounting Method:
Through Hole
