Manufacturer Part #
M2022SS1W01

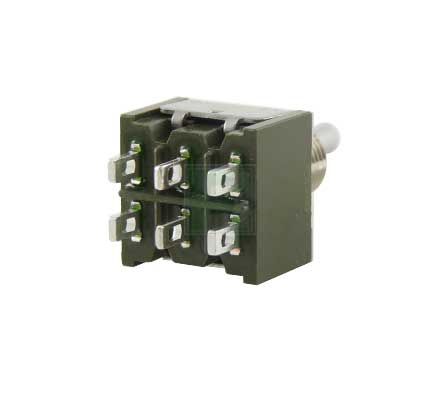

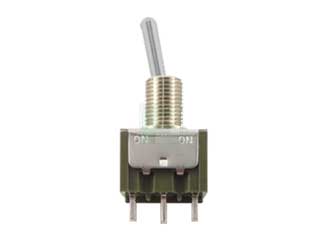

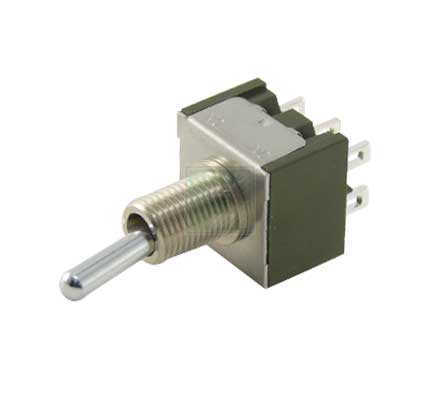

M Series 6 A Mini DPDT On-None-On Solder Lug Panel Mount Toggle Switch
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | NKK Switches | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:100 per Box Mounting Method:Panel Mount |
||||||||||
| Date Code: | |||||||||||
NKK Switches M2022SS1W01 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Attached is the updated PCN 400 PN file which contains "Direct Replacement", "Recommended alternate", or "discontinued" product. For "Recommended Alternate" or "Direct Replacement" the Master list provides the dates the product is available to purchase, the two dates are July 2023 or April 2024. This a reminder that the last time buy for current PCN 400 PN's to NKK's factory is June 30, 2023. Due to containing an environmentally restricted material, Dechlorane Plus, NKK Switches will be discontinuing a limited number of products as outlined on the following table. Guidelines regarding Dechlorane Plus will be coming into effect in the near future, and NKK prefers to be proactive regarding environmental responsibility. The discontinued products will include standard and custom part numbers. Effective Dates Orders from the release date of this notice for the discontinued products specified are considered noncancelable, nonreturnable (NCNR ). Orders for any of the discontinued products listed will be accepted through June 30, 2023. The end of sales date is April 30, 2024.
Due to containing an environmentally restricted material, Dechlorane Plus, NKK Switches will be discontinuing a limited number of products as outlined on the following table. Guidelines regarding Dechlorane Plus will be coming into effet in the near future.Effective DatesOrders from the release date of this notice for the discontinued products specified are considered noncancelable, nonreturnable (NCNR). Orders for any of the discontinued products listed will be accepted through June 30, 2023.The end of sales date is December 31, 2023.
Due to containing an environmentally restricted material, Dechlorane Plus, NKK Switches will be discontinuing a limited number of products as outlined on the following table. Guidelines regarding Dechlorane Plus will be coming into effect in the near future, and NKK prefers to be proactive regarding environmental responsibility. The discontinued products will include standard and custom part numbers. Effective Dates Orders from the release date of this notice for the discontinued products specified are considered noncancelable, nonreturnable (NCNR ). Orders for any of the discontinued products listed will be accepted through June 30, 2023. The end of sales date is April 30, 2024.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=M2022SS1W01&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/8172603
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=M2022SS1W01&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/8172603
NKK Switches M2022SS1W01 - Technical Attributes
| Switch Operation: | On-None-On |
| Circuitry: | DPDT |
| Rated Voltage (VAC): | 125VAC |
| Voltage Rating: | 30V |
| Current Rating: | 6A |
| Insulation Resistance: | 1000MΩ |
| Contact Material: | Silver |
| Contact Plating: | Silver |
| Actuator Type: | Bat |
| Termination Style: | Solder Lug |
| Dielectric Withstanding Voltage: | 1500V |
| Bushing Style: | Threaded |
| Operating Temperature: | -30°C to +85°C |
| Dimension: | L 13mm x W 12.7mm x H 28.8mm |
| Mounting Method: | Panel Mount |
Features & Applications
The M2022SS1W01-RO offers a double pole, double throw (DPDT) switch operation providing an On-None-On function. This epoxy sealed miniature toggle switch has a 0.413 inch (10.5 mm) bright chrome flatted actuator with 0.35 inch (8.9 mm) threaded bushing and keyway. Terminals are solder lug with silver contact material.
Antirotation design, standard on noncylindrical levers, maters, mates toggle and bushing; bottom of toggle has two flatted sides which fit into a complementary opening inside bushing. Antijamming design protects contacts from damage due to excessive downward force on actuator. High torque bushing construction prevents rotation or separation from frame during installation. Whereas high insulation barriers increase isolation of circuits in multipole devices and provide added protection to contact points.
These device also features epoxy sealed terminals which prevent entry of solder flux and other contiminants, while external insulating barriers increase insulation resistance and dielectric strength. Interlock actuator block,lever and interior guide prevent switch failure due to biased lever movement. Clinching of frame to case provides 1,500V dielectric strength.
Key Features:
- Ul Flammability rating of 94V-0
- External Connections must be made during field installations
- Toggle length changes on the bushing selected
- Standard Hardware for small and large bushings
- Optional Splashproof Boots
Specifications:
- 6 A @ 125 V AC or 3A @ 250 V AC
- 4 A @ 30 V DC for On-None-On & On-None-Off; 3 A @ 30 V DC for all other circuits
- 0.4VA maximum @ 28V AC/DC
- Operating Temperature: -30 °C to +85 °C
