Manufacturer Part #
ECS-80-18-4X-CKM

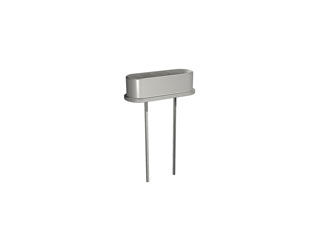

HC-49USX Series 8 MHz +/-10ppm Stab +/-10ppm Tol -20C to 70C Crystals
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ECS Inc. | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:HC-49/US Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
ECS Inc. ECS-80-18-4X-CKM - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ECS-80-18-4X-CKM&field4=ECS Inc.&field18=https://p1na.futureelectronics.com/p/8176847
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ECS-80-18-4X-CKM&field4=ECS Inc.&field18=https://p1na.futureelectronics.com/p/8176847
ECS Inc. ECS-80-18-4X-CKM - Technical Attributes
Attributes Table
| Load Capacitance: | 18pF |
| Operating Frequency: | 8MHz |
| Frequency Tolerance: | ±10ppm |
| Operating Temp Range: | -20°C to +70°C |
| ESR (Equivalent Series Resistance): | 80Ω |
| Drive Level: | 500µW |
| Aging (First Year): | ±5ppm |
| Storage Temperature Range: | -55°C to +125°C |
| Moisture Sensitivity Level: | 1 |
| Dimension: | 11.35 x 4.65 x 3.5 mm |
| No of Pins: | 2 |
| Package Style: | HC-49/US |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
1,000
$0.22
2,000+
$0.215
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Package Style:
HC-49/US
Mounting Method:
Through Hole
