Manufacturer Part #
1-208657-1

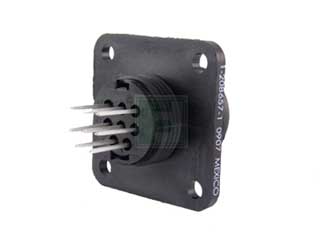

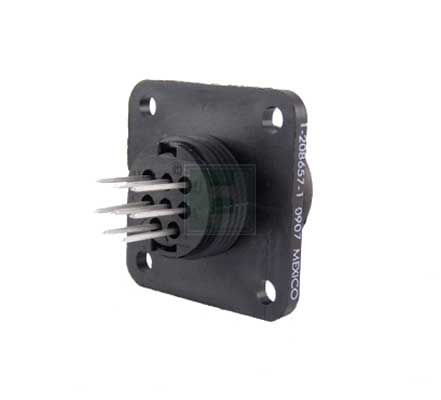

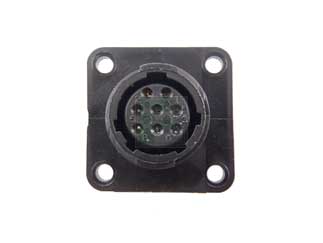

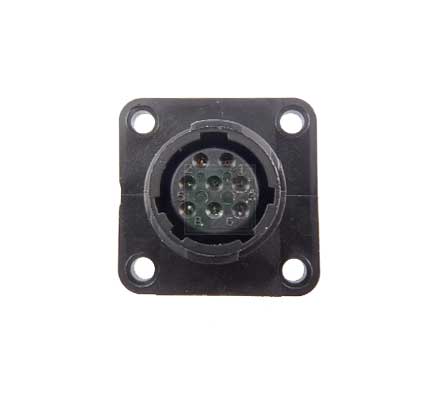

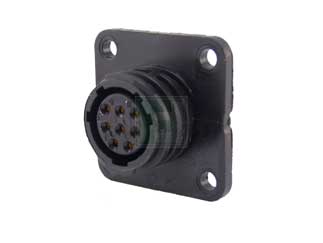

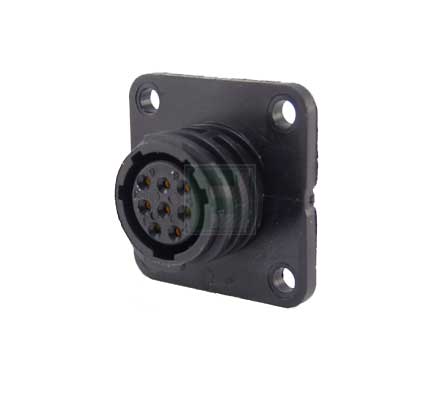

CPC Series 2 Panel Mount Receptacle 8 Position Circular Plastic Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:324 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 1-208657-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-208657-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/8456022
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-208657-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/8456022
TE Connectivity 1-208657-1 - Technical Attributes
| Style/Orientation: | Panel Mount Receptacle |
| No of Positions: | 8 |
| Mating Type: | Threaded |
| Termination: | Male/Pin Solder |
| Material: | Plastic |
| Mounting Method: | Through Hole |
Features & Applications
The 1-208657-1 is a 8 position panel mount receptacle circular plastic connector.
The series 2 connectors accept Size 20 DF (precision formed) and Size 20 DM (Screw-machined) pin and socket contacts with a .040 [1.02] pin diameter, Size 20 DF contacts are available in crimp and solder versions, as well as a posted version for wrap-type and pc board applications. Maximum current carrying capability is 7.5 amperes. Many connector arrangements offer both standard and reverse sex contact loading--from 8 thru 63 positions.
Features:
- Connector Assembly
- Connector Style = Receptacle
- 8 Positions
- 8 Signal Positions
- 0 Power Positions
Available Packaging
Package Qty:
324 per Tray
Mounting Method:
Through Hole
