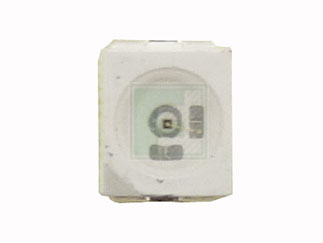

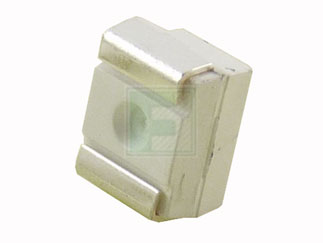

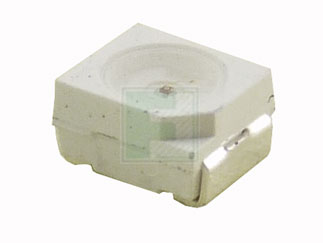

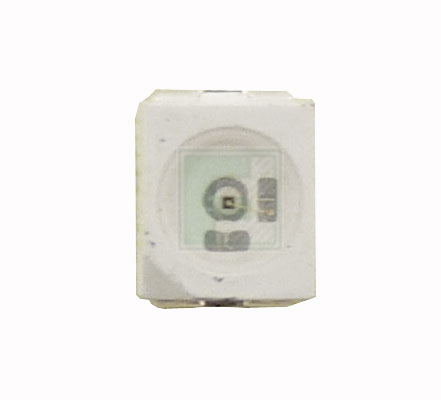

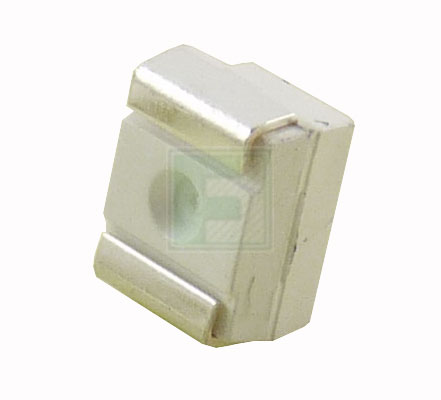

Lumex | SML-LX2832SRC-TR

Manufacturer Part #

SML-LX2832SRC-TR

Red 2.8 x 3.2 mm 120° Water Clear 100 mcd 1.7 V Reflector Surface Mount LED

ECAD Model:
Mfr. Name: Lumex
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Lumex SML-LX2832SRC-TR - Technical Attributes
Attributes Table
Color: Red
Lens Type: Clear
Forward Voltage: 1.7V
Forward (Drive) Current: 20mA
Intensity: 100mcd
Viewing Angle: 120°
Dimension: H  1.9mm x L  3.5mm x W  2.8mm
Mounting Method: Surface Mount
Features & Applications

The SML-LX2832SRC-TR is a 1.7 V 2.8 mm x 3.2 mm 2832 Package Red color Water Clear Lens Surface Mount With Reflector QuasarBrite LEDs

Features:

  • State-of-the-Art, High Brightness Chip Technology
  • Choice of LED Colors and Lens FInishes
  • Lead Frame / Lens Casting Reliability
  • Easy-to-Solder Leads, Tin Finish
  • Custom Solutions available

Parameters:

  • Peak Forward current: 200 mA
  • Steady Current : 30 mA
  • Power Dissipation : 100 mW
  • Derate from 25°c : -1.2 mW/°C
  • Operating temperature : -40 to + 85°C
  • Peak wave length  : 660 nm
  • Forward voltage : 1.7 V to 2.2 V
  • Reverse Voltage : 4.0 V
  • Emitted color :Red
  • Epoxy Lens Finish : Water clear

Applications:

  • Industrial Controls
  • Medical Eqiupment
  • Communications Equipment
  • Test and Measurement Equipment
  • Security Electronics
  • Life Safety Equipment
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
2000
Multiple Of:
2000
Total
$294.00
USD
Quantity
Unit Price
2,000
$0.147
4,000+
$0.143
