Manufacturer Part #

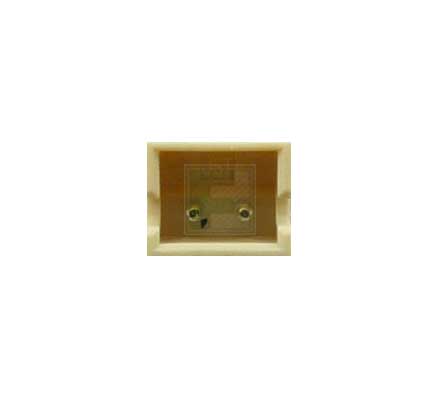

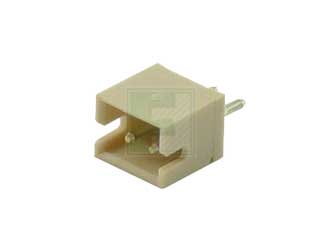

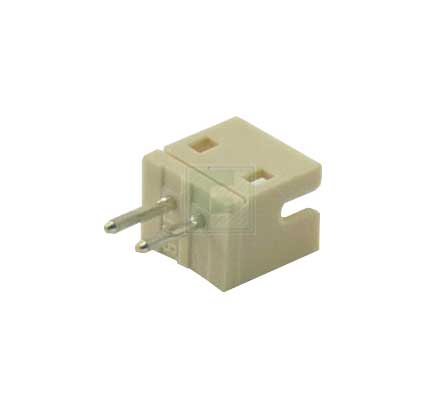

B2B-ZR(LF)(SN)
ZH Series 2 Position 1.5 mm Pitch Top Entry Through Hole Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2219 | ||||||||||
Product Specification Section
JST B2B-ZR(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B2B-ZR(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/8781528
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B2B-ZR(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/8781528
JST B2B-ZR(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 2 |
| Pitch: | 1.5 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 50V |
| Current Rating: | 1A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 500MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The B2B-ZR(LF)(SN) is a part of ZR Series that ensure reliable connection even during severe environmental conditions and is a Disconnectable Insulation Displacement Connector. It has an Operating Temperature of -25° C to +85° C.
Product Features:
- Compact
- Fully shrouded header
- Twin U-slot insulation displacement section
- 3-point grip construction
- Distortion resistant construction
- Compatible with the ZH crimp style connector
- Current Rating: 0.7A AC, DC(AWG #28)
- Voltage Rating: 50V AC, DC
- Contact Resistance: Initial value/20mO max.
- Insulation Resistance: 500 MO min
- Withstanding voltage: 500V AC/minute
- Applicable wire: UL1571, AWG #30,#28
- Applicable PC board thickness: 0.6 to 1.2mm, 1.6mm
Pricing Section
Global Stock:
23,736
USA:
23,736
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$0.0572
400
$0.0558
1,500
$0.054
4,000
$0.0527
15,000+
$0.0498
Product Variant Information section
Available Packaging
Package Qty:
2000 per Box
Mounting Method:
Through Hole
