Manufacturer Part #
PAM8006ATR

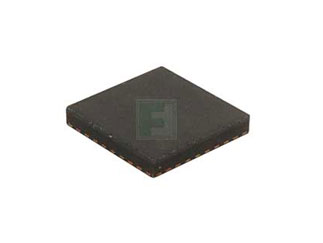

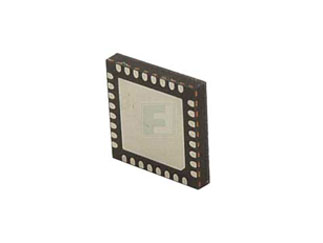

Dual Channel 15 W (x2) 8 Ω Class D Power Limit Audio Amplifier - QFN-32EP
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:QFN-32 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated PAM8006ATR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PAM8006ATR&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/p/9038926
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PAM8006ATR&field4=Diodes Incorporated&field18=https://p1na.futureelectronics.com/p/9038926
Diodes Incorporated PAM8006ATR - Technical Attributes
Attributes Table
| Type: | Class D |
| No of Channels: | 2 |
| Output Type: | Stereo |
| Gain: | 32dB |
| Supply Voltage-Max: | 18V |
| Output Power: | 15W |
| Signal-to-Ratio-Nom: | 90dB |
| Operating Temp Range: | -20°C to +85°C |
| Power Supply Rejection Ratio: | -65dB |
| Total Harmonic Distortion: | 0.28% |
| Package Style: | QFN-32 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
3,000+
$0.785
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
QFN-32
Mounting Method:
Surface Mount
