Manufacturer Part #

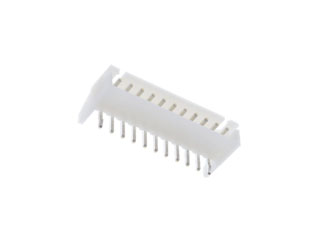

S11B-XH-A-1(LF)(SN)
11 Position XH HEADER SIDE TYPE CONNECTOR
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:250 per Reel Mounting Method:Through Hole | ||||||||||
| Date Code: | 2140 | ||||||||||
Product Specification Section
JST S11B-XH-A-1(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=S11B-XH-A-1(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/9186760
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=S11B-XH-A-1(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/9186760
JST S11B-XH-A-1(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 11 |
| Pitch: | 2.5 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 1GΩ |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
250
USA:
250
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
250
$0.24
750
$0.235
1,250
$0.23
3,750
$0.225
6,250+
$0.22
Product Variant Information section
Available Packaging
Package Qty:
250 per Reel
Mounting Method:
Through Hole
