Monolithic Power Systems | EVM3830-QV-00A

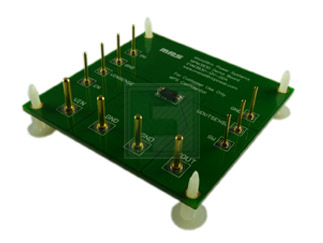

The EVM3830-QV-00A is used for demonstrating the performance of MPS’s MPM3830 a low voltage high switching frequency step-down switcher with built-in power MOSFETs and power inductor.

MPM3830 provides up to 3A continuous highly efficient output with constant-on-time control for fast loop response.

Features:

• Wide 2.7V to 6V Operating Input Range
• Fixed and Adjustable output from 0.6V
• 3.0mm x 5.0mm x 1.6mm QFN Package
• Total Solution Size 8.5mm x 4.5 mm
• Up to 3A Continuous Output Current
• 100% Duty Cycle in Dropout
• Ultra Low IQ: 40μA
• EN and Power Good for Power Sequencing
• Cycle-by-Cycle Over-Current Protection
• Short Circuit Protection with Hiccup Mode
• Adjustable Output Only Needs 4 External Components - 2 Ceramic Capacitors and FB Divider Resistors
• Fixed Output Only Needs Input and Output Capacitors

Applications:

• Low Voltage I/O System Power
• LDO Replacement
• Power for Portable Products
• Storage (SSD/HDD)
• Space-limited Applications
