Manufacturer Part #
MCP23X17EV
Expander Evaluation Board GPIO 16-Bit for MCP23X17 Series
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bulk | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Microchip MCP23X17EV - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Microchip MCP23X17EV - Technical Attributes
Attributes Table
| Application Type: | Interfacing Solutions |
| Core Supported: | MCP23017/MCP23S17 |
Features & Applications

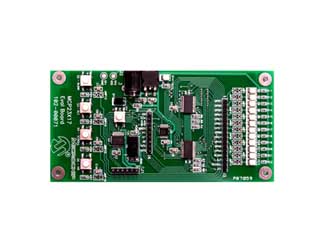

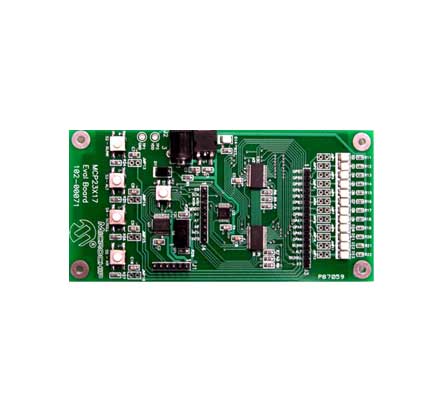

The MCP23X17 16-bit GPIO Expander Evaluation Board demonstrates simple input/output functionality of the MCP23017 (I2C interface) and the MCP23S17 (SPI interface).
The system demonstrates the simplicity of monitoring four pins configured as inputs and applying a predetermined pattern on LEDs connected to the remaining 12 pins configured as outputs.
Features:
- Demonstrates the MCP23X17 devices in a simple I/O application
- ICSP header for the PICmicro allows users to customize firmware to further evaluate the MCP23X17
- Jumpers and headers allow the MCP23X17 to connect directly to custom applications for prototype work
- Can be powered from a 3.0 V to 5 V DC power source (connected to the +5 V and GND test points)
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
1
$65.07
4
$64.12
10
$63.50
25
$62.89
40+
$61.97
Product Variant Information section
Available Packaging
Package Qty:
1 per Bulk
