Manufacturer Part #
MCP3551DM-PCTL

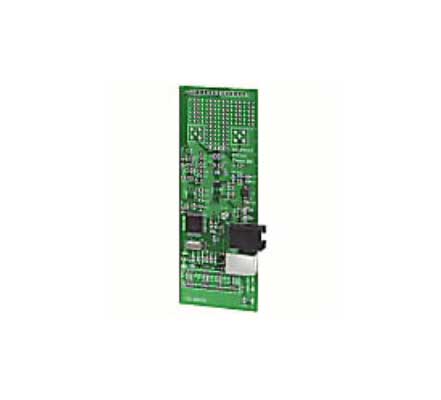

MCP3551 Delta Sigma ADC Evaluation Board
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bulk | ||||||||||
| Date Code: | |||||||||||
Microchip MCP3551DM-PCTL - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
Microchip MCP3551DM-PCTL - Technical Attributes
| Application Type: | ADC/DAC Solutions |
| Core Supported: | MCP3551 |
Features & Applications
MCP3551DM-PCTL Delta-Sigma ADC Demo Board is designed to demonstrate Microchip Technology’s MCP3551 22-Bit Delta-Sigma Analog-to-Digital (ADC) Converter performance using DataView™ software installed on a PC.
The demo board can be used with MPLAB® ICD2, PICkit™ 1 Flash Starter Kit, or PICkit™ 2 for developing demonstration/evaluation firmware. Optionally, a second installed MCP3551 can be used with and optional stimulus board (sold separately). The PCB layout practices low-noise design to reduce the signal noise as much as possible in order to demonstrate the 22-Bit performance of the MCP3551.
Features:
- Three precision potentiometers for demonstrating the capabilities of the MCP3551
- On-board PIC18F4550 with USB for DataView communication
- USB interface for connecting to a PC
- Dataview™ software with easy-to-read format and data logging
- Three headers/connectors for programming the PICmicro® using any of the following:
- PICkit™1 Flash Starter Kit
- PICkit™2
- MPLAB® ICD2 (debugger and programmer)
Available Packaging
Package Qty:
1 per Bulk
