STEVAL-ISB009V1

Evaluation Board based on STC3100 LI-ION Battery Monitoring and Gas Gauge

Mfr. Name: STMicroelectronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
Application Type: Battery Management
Core Supported: STC3100
Features & Applications

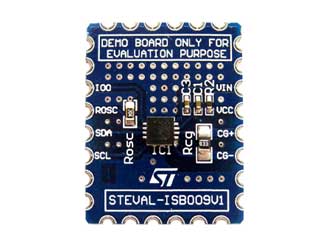

The STEVAL-ISB009V1 is a demonstration board, based on the STC3100. It is able to monitor the critical parameters of a single-cell Li-Ion battery (voltage, temperature, and current) and includes hardware functions to implement a gas-gauge for battery charge monitoring, based on a programmable 12-bit to 14-bit A/D converter.

The battery current can be up to 2.5 A and the accumulator system provides a capacity up to +/- 7000 mAh with a resolution of 0.2 mAh.

Features:

  • Accurate battery voltage measurement
  • Coulomb counter to keep track of the battery’s state-of-charge
  • Internal temperature sensor
  • Internal or external 32 kHz time base
  • I2C interface for battery monitoring and device control
  • 0.5 % battery voltage accuracy
  • 1 % Coulomb counter accuracy using an external RTC signal (3.5 % using the internal time base)
  • Low power consumption: 100 μA in operating conditions, 2 μA in stand-by mode
  • RoHS compliant
Pricing Section
Stock:
0
Minimum Order:
1
Multiple Of:
1
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Total
$74.01
USD
Quantity
Web Price
1
$74.01
4
$69.20
15
$64.91
40
$61.90
100+
$59.21
