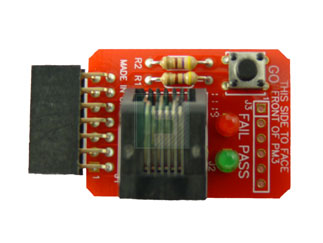

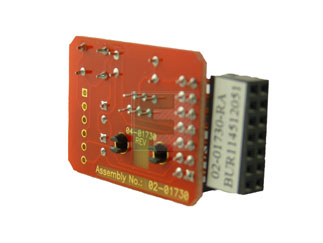

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

AC164111

Interface Adapter used Between MP3 Programmer and RJ11 Cable

AC164111 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Microchip
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1 per Bulk
Date Code:

Microchip AC164111 - Technical Attributes

Application Type:

Adapter Boards

Features & Applications

The AC164111 is a AC164 series Adapter PM3 ICSP to RJ-11.This adapter was designed to accommodate the transition from development to a production environment seamlessly.

Product Features:

Plugs into the 14-pin ICSP Insulation Displacement header on the MPLAB PM3 Programmer
Provides an interface to which an RJ11 cable assembly can be used.
The RJ11 interface is the de-facto standard on most Microchip demonstration boards.
Facilitates automation and program sequencing by providing a header footprint with PASS/FAIL and GO signals and LED indicators useful to programming line operators.
