PBSS4220PANSX

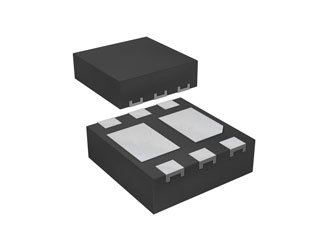

PBSS4220PANS Series 20 V 2 A Surface Mount NPN Small Signal Transistor - UDFN-6
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Nexperia | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:3000 per Std. Mfr. Pkg Package Style:UDFN-6 Mounting Method:Surface Mount |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
Nexperia PBSS4220PANSX - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
N/A
HTS Code:
N/A
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PBSS4220PANSX&field4=Nexperia&field18=https://p1na.futureelectronics.com/p/discretes--transistors--bipolar-transistors/pbss4220pansx-nexperia-C018866620
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PBSS4220PANSX&field4=Nexperia&field18=https://p1na.futureelectronics.com/p/discretes--transistors--bipolar-transistors/pbss4220pansx-nexperia-C018866620
Nexperia PBSS4220PANSX - Technical Attributes
Attributes Table
| Polarity: | NPN |
| Type: | Small Signal |
| CE Voltage-Max: | 20V |
| Collector Current Max: | 2A |
| Power Dissipation-Tot: | 700mW |
| Collector - Base Voltage: | 20V |
| Collector - Emitter Saturation Voltage: | 320mV |
| Emitter - Base Voltage: | 7V |
| DC Current Gain-Min: | 250 |
| Collector - Current Cutoff: | 50µA |
| Configuration: | Dual |
| Frequency - Transition: | 120MHz |
| Operating Temp Range: | -55°C to +150°C |
| Rise Time: | 50ns |
| Fall Time: | 60ns |
| Moisture Sensitivity Level: | 1 |
| Package Style: | UDFN-6 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
CALL Weeks
Quantity
Unit Price
6,000
$0.1727
9,000
$0.1715
12,000
$0.1706
15,000+
$0.1679
Product Variant Information section
Available Packaging
Package Qty:
3000 per Std. Mfr. Pkg
Package Style:
UDFN-6
Mounting Method:
Surface Mount
