Manufacturer Part #
0234002.MXP

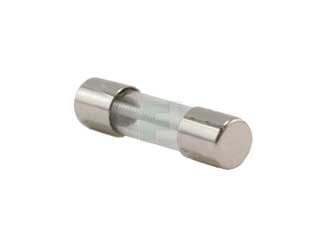

234 Series Medium Acting 250 V 2 A Ø 5 x 20 mm Glass Cartridge Fuse
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1000 per Bag Mounting Method:Fuse Block / Clip / Holder |
||||||||||
| Date Code: | 2321 | ||||||||||
Littelfuse 0234002.MXP - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses. With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes. This change is only the addition of the below marking to the label and does not impact form, fit and function of the fuse itself.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=0234002.MXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--electronic-fuses/0234002-mxp-littelfuse-1203114
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=0234002.MXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--electronic-fuses/0234002-mxp-littelfuse-1203114
Littelfuse 0234002.MXP - Technical Attributes
| Voltage Rating: | 250V |
| Rated Voltage (VAC): | 250VAC |
| Response Characteristic: | Medium Acting |
| Current Rating: | 2A |
| Resistance: | 0.0684Ω |
| Interrupting Rating: | 100A |
| Operating Temp Range: | -55°C to +125°C |
| Typical Melting I2t (A2sec): | 9.97A |
| Dimension: | L 20mm x D 5mm |
| Mounting Method: | Fuse Block / Clip / Holder |
Features & Applications
Features:
- Designed to UL/CSA/ANCE 248 Standard
- Available in cartridge and Axial lead format
- RoHS Compliant and Lead Free
Applications:
Available Packaging
Package Qty:
1000 per Bag
Mounting Method:
Fuse Block / Clip / Holder
