Manufacturer Part #
V07E275P

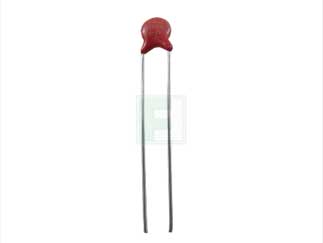

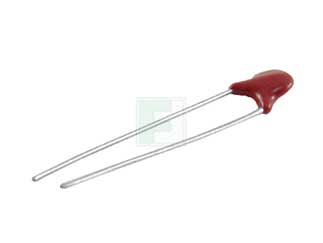

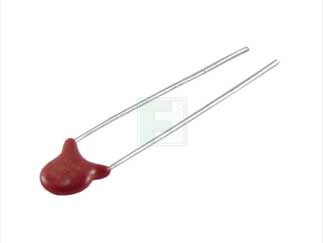

UltraMOV® Series 350 VDC 275 V RMS 710 V Clamp 80 pF Radial Metal Oxide Varistor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Bulk Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | 2509 | ||||||||||
Littelfuse V07E275P - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description:Per LFPCN# 41497, UltraMOV? Varistor Series inner electrode was changed from Ag to Cu from April 2024. Due to current Cu electrode production capacity limitation, we will resume Ag electrode production for UltraMOV? Varistor Series from September 14th, 2024. During the change transition period, customers are expected to receive both Cu and Ag products until Cu products inventory in Littelfuse warehouse and distribution channels are depleted.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V07E275P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--varistors-mov-mlv/v07e275p-littelfuse-6044226
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V07E275P&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--varistors-mov-mlv/v07e275p-littelfuse-6044226
Littelfuse V07E275P - Technical Attributes
| Capacitance: | 80pF |
| Clamping Voltage-Max: | 710V |
| Peak Output Current: | 1750A |
| Rated Voltage: | 350V |
| RMS Voltage-Max: | 275V |
| Varistor Voltage Range: | 387V to 473V |
| Current Rating: | 1mA |
| Energy: | 28J |
| Insulation Resistance: | 1000MΩ |
| Operating Temp Range: | -55°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 2 |
| Diameter: | 7mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1500 per Bulk
Package Style:
RADIAL
Mounting Method:
Through Hole
