Manufacturer Part #

1-6609987-0

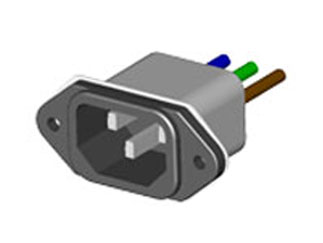

Corcom SRB Series 15 Amp Small Footprint Shielded Line EMI RFI Filter - 15SRB8-Q

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
Application: AC
Type: Power Line Filter
Rated Current: 15A
Mounting Method: Flange Mount
Features & Applications

The 1-6609987-0 is a part of 1-6609 series 15 A small footprint shielded line EMI RFI power filter.

Features:

  • Product Type Features:
    • Product Type = Filter - EMI/RFI
    • Filter Type = Power Line
    • Series = SRB(1-15 Amp)
    • Mount Angle = Vertical
  • Termination Features:
    • Terminal Input - Output Combination = Wire Lead
  • Electrical Characteristics:
    • Current Rating (A) = 15
    • Capacitor Value (pF) = 33
    • Voltage ≤ (VAC) = 250
    • Leakage Current (Line-to-Ground) Max. @ 120 VAC 60 Hz (µA) = 2.1
    • Leakage Current (Line-to-Ground) Max. @ 250 VAC 50 Hz (µA) = 3.65
  • Body Features:
    • Mount Style = Flanged
  • Operation/Application:
    • Application = General Purpose, Power Supplies





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
13 Weeks
Minimum Order:
40
Multiple Of:
40
Total
$200.40
USD
Quantity
Web Price
40
$5.01
80
$4.13
120
$4.06
160+
$4.01
