Manufacturer Part #
1393788-3

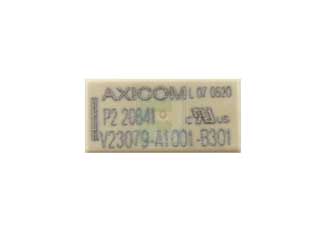

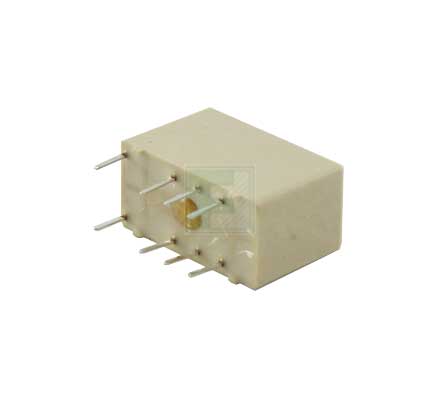

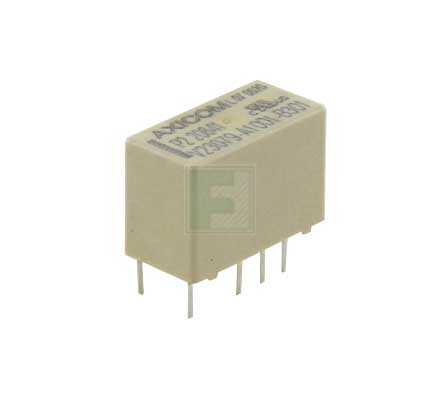

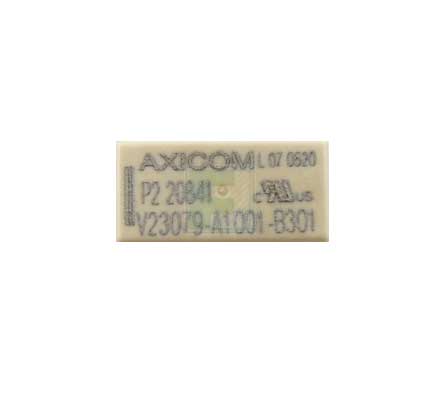

P2 Series 2 A DPDT 5 VDC Through Hole Communications/Signal PC Board Relays
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2311 | ||||||||||
TE Connectivity 1393788-3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
*** UPDATE FPCN105581 - Material Change - With Additional Part List ***General Description of ChangesTo ensure consistent high quality and availability, we intend to add a new alternative plastic material for P2 overmoulding to the current plastic material for P2 overmoulding. While both materials have the same characteristics, have passed the same tests and are both UL, VDE and certified, the new material color appears slightly lighter. The relay form, features and ratings remain unchanged.Reason for Changes:Dear Customer, In order to ensure a consistently high quality and delivery capability, we intend to add an alternative plastic material to the P2 Overmold. The parts listed below are affected by this change.
General Description of Changes:To ensure consistent high quality and availability, we intend to add a new alternative plastic material for P2 overmoulding to the current plastic material for P2 overmoulding. While both materials have the same characteristics, have passed the same tests and are both UL, VDE and certified, the new material colour appears slightly lighter. The relay form, features and ratings remain unchanged.eason for Changes:Dear Customer, In order to ensure a consistently high quality and delivery capability, we intend to add an alternative plastic material to the P2 Overmold. The parts listed below are affected by this change.
General Product Description: Alternative material Vectra E130i is Laperos E130i. Description of Changes No changes of drawing, specifacition, function. P2 relays use Laperos E130i and Vectra E130i with have same properties. Reason for Changes: P2 relay use Vectra E130i and Laperos E130i. Both materials have the same characteristics, passed the same tests and are both UL certified. The relay form (dimensions), features and ratings keep unchanged.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1393788-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1393788-3-te-connectivity-7174295
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1393788-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1393788-3-te-connectivity-7174295
TE Connectivity 1393788-3 - Technical Attributes
| Relay Type: | Signal |
| Contact Form: | DPDT (2 Form C) |
| Nominal Coil Voltage: | 5V |
| Contact Current-Max: | 2A |
| Coil Resistance: | 178Ω |
| Switching Voltage: | 220V |
| Contact Material: | Silver Nickel (AgNi) |
| Operating Temp Range: | -40°C to +85°C |
| Height - Max: | 9.8mm |
| Termination Style: | PCB |
| No of Terminals: | 8 |
| Mounting Method: | Through Hole |
Features & Applications
The 1393788-3 is a P2 Series 2 A DPDT 5 VDC Through Hole Communications/Signal PC Board Relays
Features:
- Standard telecom relay (ringing and test access)
- Slim line 15 x 7.5 mm, 0.590 x 0.295 inch
- Switching current 5 A
- 2 changeover contacts (2 form C / DPDT)
- Bifurcated contacts
- Immersion cleanable
- High sensitivity results in low nominal power consumption 140 mW for non-latching and latching with 2 coils 70 mW for latching with 1 coil
- For single coil version:
- Surge voltage resistance between contact and coil for single coil version:
- 2.5 kV (2 / 10 µs) meets the Telcordia Requirement GR-1089
- 1.5 kV (10 / 160 µs) meets FCC Part 68
Applications:
- Communications equipment linecard application
(ringing and test access)
PABX
Voice over IP - Office equipment
- Measurement and control equipment
- Automotive equipment CAN bus, keyless entry, speaker switch
- Medical equipment
- Consumer electronics Set Top Boxes, HiFi
Available Packaging
Package Qty:
50 per Tube
Mounting Method:
Through Hole
