Référence fabricant
3-1393210-2

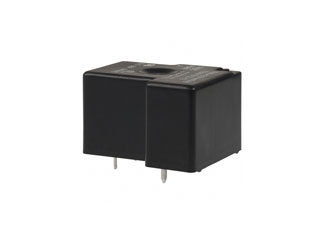

T9A Series 30 A SPDT 110 VDC PCB Mount General Purpose Power Relay
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | TE Connectivity | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :500 par Box Méthode de montage :PCB Mount | ||||||||||
| Code de date: | |||||||||||
TE Connectivity 3-1393210-2 - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
eneral Description of ChangesDear customers, please be aware of an upcoming feature change to the listed T9A/T9E part numbers with the new melted sealing technology, there is no impact on the product performance with the change. You can see comparison details in the below PCN images table. Before:1. For the sealed type, the nib is at the top corner of the case normally closed, and use UV glue to seal the vent hole on the base finally. 2. For the vented type, the nib is at the top corner of the case normally closed and the vent hole is at the bottom of the base normally opened . After: 1. For the sealed type, use melting sealing technology to seal the vent hole on the case finally, not use UV glue further and cancel the vent hole on the base. 2. For the vented type, it's a opened nib vent hole and cancel the vent hole on the base.Reason for Changes:New melted sealing technology implementation to cancel UV glue usage.
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=3-1393210-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/3-1393210-2-te-connectivity-3573813
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=3-1393210-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/3-1393210-2-te-connectivity-3573813
TE Connectivity 3-1393210-2 - Caractéristiques techniques
| Contact Form: | SPDT (1 Form C) |
| Nominal Coil Voltage: | 110V |
| Contact Current-Max: | 30A |
| Termination Style: | PC Pin |
| Méthode de montage : | PCB Mount |
Emballages disponibles
Qté d'emballage(s) :
500 par Box
Méthode de montage :
PCB Mount
