TE Connectivity | 5-1393144-7

Manufacturer Part #

5-1393144-7

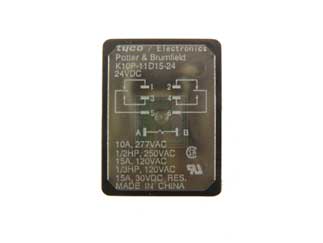

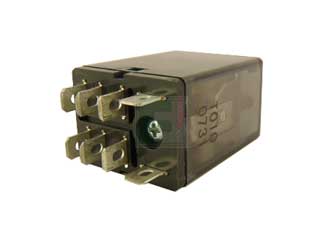

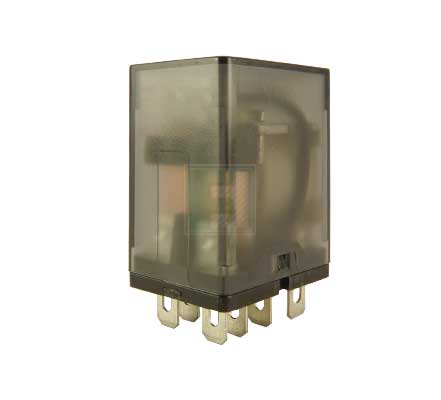

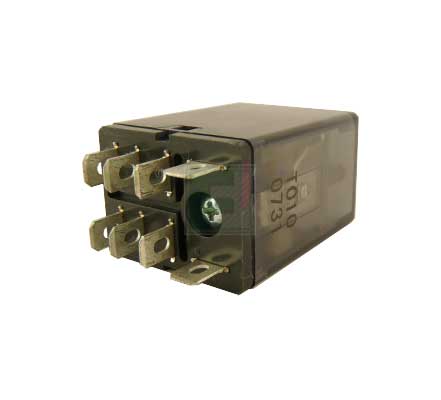

K10 Series 15 A DPDT 24 VDC Socket Mount Miniature General Purpose Power Relay

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 5-1393144-7 - Technical Attributes
Attributes Table
Relay Type: General Purpose
Coil Type: Non-Latching
Contact Form: DPDT (2 Form C)
Nominal Coil Voltage: 24V
Contact Current-Max: 15A
Coil Resistance: 650Ω
Switching Voltage: 120V
Contact Material: Silver Cadmium Oxide (AgCdO)
Operating Temp Range: -45°C to +70°C
Insulation Resistance: 1000MΩ
Height - Max: 34.9mm
Termination Style: Quick Connect
No of Terminals: 8
Mounting Method: Socket Mount
Features & Applications
The 5-1393144-7 is a K10 Series 15 A DPDT 24 VDC Bracket Mount Miniature General Purpose Power Relay.

Features:

  • 2 Form C contact arrangement
  • AC and DC coils
  • Socket, PCB and top flange mounting options

Applications:

  • Industrial controls
  • Medical
  • Motor controls





Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
18 Weeks
Minimum Order:
250
Multiple Of:
25
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$2,940.00
USD
Quantity
Unit Price
25
$11.90
50+
$11.76
