Manufacturer Part #
1825360-3

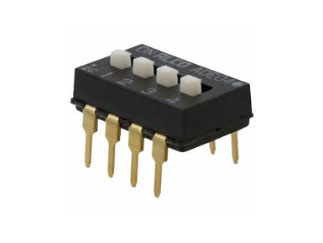

Switch DIP OFF/ON SPST 4 Raised Slide 0.1A 24VDC PC Pins 2.54mm
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:7000 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 1825360-3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes:Please be aware that no change has been made to the product. The following correction is only to fix typo errors and for clarification on the electrical ratings. this apply to the listed part numbers. Before: MAX. CONTACT RATING SWITCHING: 100mA @24VDC INSULATION RESISTANCE: 1000M MIN @100VDC After: MAX. CONTACT RATING SWITCHING: 100mA @5VDC / 25mA @24VDC INSULATION RESISTANCE: 100M MIN @100VDCReason for Changes:Correction of typos on Electrical ratings
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825360-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/1825360-3-te-connectivity-2051346
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825360-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/1825360-3-te-connectivity-2051346
TE Connectivity 1825360-3 - Technical Attributes
| Type: | Dip |
| No of Positions: | 4 |
| Circuitry: | SPST |
| Actuator Style: | Slide |
| Operating Force: | 800gf |
| Termination Style: | PC Pin |
| Sealed Option: | Sealed |
| Contact Resistance: | 300mΩ |
| Voltage Rating: | 24V |
| Current Rating: | 100mA |
| Insulation Resistance: | 500Ω |
| Terminal Pitch: | 2.54mm |
| Operating Temp Range: | -30°C to +85°C |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
7000 per Tube
Mounting Method:
Through Hole
