Manufacturer Part #
38BT-0-H-2-N

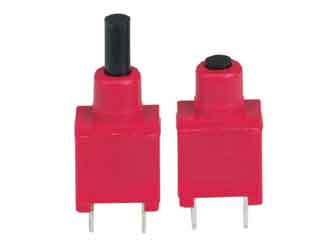

38BT Series 020 in Plunger, Silver Contact, No Seal Pushbutton Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Grayhill | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Grayhill 38BT-0-H-2-N - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=38BT-0-H-2-N&field4=Grayhill&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--pushbutton/38bt-0-h-2-n-grayhill-7516586
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=38BT-0-H-2-N&field4=Grayhill&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--pushbutton/38bt-0-h-2-n-grayhill-7516586
Grayhill 38BT-0-H-2-N - Technical Attributes
Attributes Table
| Switch Operation: | Mom |
| Circuitry: | SPST |
| Illumination Color: | No |
| Actuator Style: | Extended |
| Termination Style: | Horizontal to PCB |
| Mounting Method: | Through Hole |
Features & Applications
The Series 38BT Butt Contact Pushbutton Switch are .20" plunger, gold contact, o-ring seal and Sub-Miniature Horizontal PC Mount.
Key Features:
- Drop-In Replacement for Industry Standard
- Sealed Plunger Option
- Printed Circuit Board Mount
- SPST and SPDT, Momentary Contact
Specifications:
- Operating Life: 80,000 make-and-break cycles at full load
- Contact Rating (resistive load):
- Gold Contacts: 0.4 VA maximum at 20 Vac or Vdc maximum
- Silver Contacts: 1.0 Amp maximum at 120 Vac or 28 Vdc
- Contact Resistance: Below 20 milliohms typical initial at 2-4 Vdc, 100 mA
- Insulation Resistance: 1000 megaohms minimum
- Voltage Breakdown: 1000 Vrms minimum at sea level
- Operating Temperature: -30°C. to +85°C
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
1
$6.42
4
$6.34
15
$6.27
40
$6.21
100+
$6.12
Product Variant Information section
Available Packaging
Package Qty:
1 per Box
Mounting Method:
Through Hole
