Manufacturer Part #
AB15AV-FC

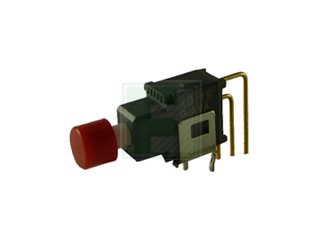

AB Series Sub Mini SPDT On-Momentary Through Hole Push Button Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NKK Switches | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Tray | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
NKK Switches AB15AV-FC - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AB15AV-FC&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--pushbutton/ab15av-fc-nkk-switches-7390990
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AB15AV-FC&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--pushbutton/ab15av-fc-nkk-switches-7390990
NKK Switches AB15AV-FC - Technical Attributes
Attributes Table
| Rated Voltage (VAC): | 28VAC |
| Rated Voltage: | 28V |
| Switch Operation: | On-Mom |
| Circuitry: | SPDT |
| Insulation Resistance: | 500MΩ |
| Illumination Color: | No |
| Cap Color: | Red |
| Actuator Style: | Plunger |
| Termination Style: | Vertical with Bracket |
| Operating Temperature: | -30°C to +85°C |
| Contact Plating: | Gold |
Features & Applications
The AB15AV-FC is a Sub Mini SPDT On-Momentary Through Hole Push Button Switch.
This switch totally sealed body construction prevents contact contamination and allows time- and money-saving automated soldering and cleaning.
Molded-in, epoxy sealed or ultrasonically welded terminals lock out flux, solvents, and other contaminants. The STC contact mechanism with benefits unavailable in conventional mechanisms: smoother, positive detent actuation, increased contact stability and unparalleled logic-level reliability.
Features:
- Designed for use in a low-voltage, low-current, logic-level circuit
- When used as intended in a logic-level circuit, the results do not produce hazardous energy
- Logic Level: 0.4 VA maximum @ 28 V AC/DC maximum
- Operating temp range: –30°C through +85°C (–22°F through +185°F)
- Specifically developed for logic-level applications
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1
$6.09
5
$6.04
20
$5.96
40
$5.92
100+
$5.83
Product Variant Information section
Available Packaging
Package Qty:
1 per Tray
