Name: ZF Electronics PRK22J5BBBNN
Brand: ZF Electronics
SKU: 9420431
Price: 1.12 USD
Availability: InStock

text.skipToContent text.skipToNavigation

- Region & Currency
- Americas
  - Other Currencies
  - CAD ($)
  - USD ($)
- Asia Pacific
  - Other Currencies
  - AUD ($)
  - CNY (¥)
  - HKD ($)
  - NZD ($)
  - SGD ($)
  - USD ($)
- Europe, Middle East, Africa
  - Other Currencies
  - CHF (CHF)
  - CZK (Kč)
  - DKK (kr)
  - USD ($)
You are changing the region you shop from. This may affect price, shipping options and product availability. Items in your current Cart will not be transferred.

You are changing currency. This may affect price, shipping options and product availability. Items in your current Cart will not be transferred.
1 (800) 675-1619

Orders shipping outside of United States will be on hold while the company evaluates tariff impacts.
Please contact your salesperson for assistance.

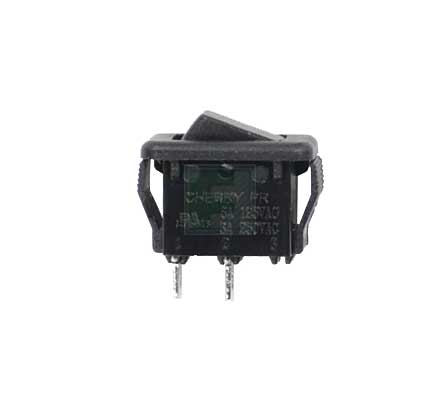

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

PRK22J5BBBNN

PR Series 6 A Non Lighted SPST On-Off Panel Mount Black Power Rocker Switch

PRK22J5BBBNN Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	ZF Electronics
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1000 per Bag Mounting Method: Panel Mount
Date Code:

ZF Electronics PRK22J5BBBNN - Technical Attributes

Switch Operation:	On-Off
Circuitry:	SPST
Current Rating:	6A
Termination Style:	Solder Lug
Contact Material:	Silver
Rated Voltage (VAC):	125VAC
Insulation Resistance:	100MΩ
Contact Plating:	Silver
Actuator Style:	Flat Blue Button
Dielectric Withstanding Voltage:	1000V
Operating Temperature:	-20°C to +65°C
Dimension:	L 15mm x W 10mm x H 11.75mm
Mounting Method:	Panel Mount

Expand List

Collapse List

Features & Applications

Cherry is a global leader in the design, development and manufacture of Snap Action Switches, Rocker Switches, Keyboards and Sensors. Taking pride in the company’s vigorous innovation policy and superior customer service guidelines, product performance meets the highest standards for quality, reliability and durability. Utilizing the latest design automation tools and in-house prototyping systems, Cherry offers the rapid designs and working prototypes for your application.

The PR Series of Panel-Mount Power Rocker Switches is offered with a 6 amp current rating with a single throw and double throw version. This economical rocker switch is available in a wide variety of colors and actuator markings.

Typical applications for the PR Series include:

Medical and Dental Equipment
Small Appliances
Vending Machines
Power Supplies
Surge Protectors

The PRK22J5BBBNN is rated at 6 amps with single pole, single throw (SPST) switch operation and On-Off function. This is a non-lighted switch with black housing and actuator and with no markings on the flat rocker. Termination is straight 3.71 mm (0.146”) quick connect.
