Manufacturer Part #
AV35023-A

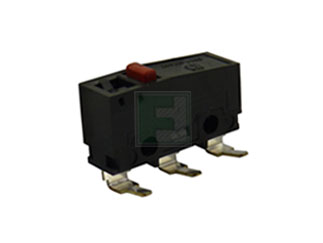

AV3 Series SPDT On-Mom 3 A 125 VAC 30 VDC Subminiature Snap Action Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bulk Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Panasonic Industry AV35023-A - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AV35023-A&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--snap-acting/av35023-a-panasonic-industry-7080371
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AV35023-A&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--snap-acting/av35023-a-panasonic-industry-7080371
Panasonic Industry AV35023-A - Technical Attributes
Attributes Table
| Circuitry: | SPDT |
| Actuator Style: | Plunger |
| Operating Force: | 490gf |
| Contact Current-Max: | 3A |
| Termination Style: | PC Pin |
| Contact Material: | Copper Alloy |
| Contact Resistance: | 50mΩ |
| Insulation Resistance: | 100MΩ |
| Dielectric Withstanding Voltage: | 1500V |
| Switch Operation: | On-Off |
| Operating Temp Range: | -25°C to +85°C |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
21 Weeks
Quantity
Unit Price
1,000+
$0.78
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bulk
Mounting Method:
Through Hole
